The Hook-It® line of products offered by Zippertubing® is a hook-and-loop closure system that is heat-sealed or sewn to a protective jacket made from an extruded film or coated fabric. The Hook-It® family of products offers the easiest closure system available from Zippertubing®. They are field installable and can be easily re-entered when necessary.

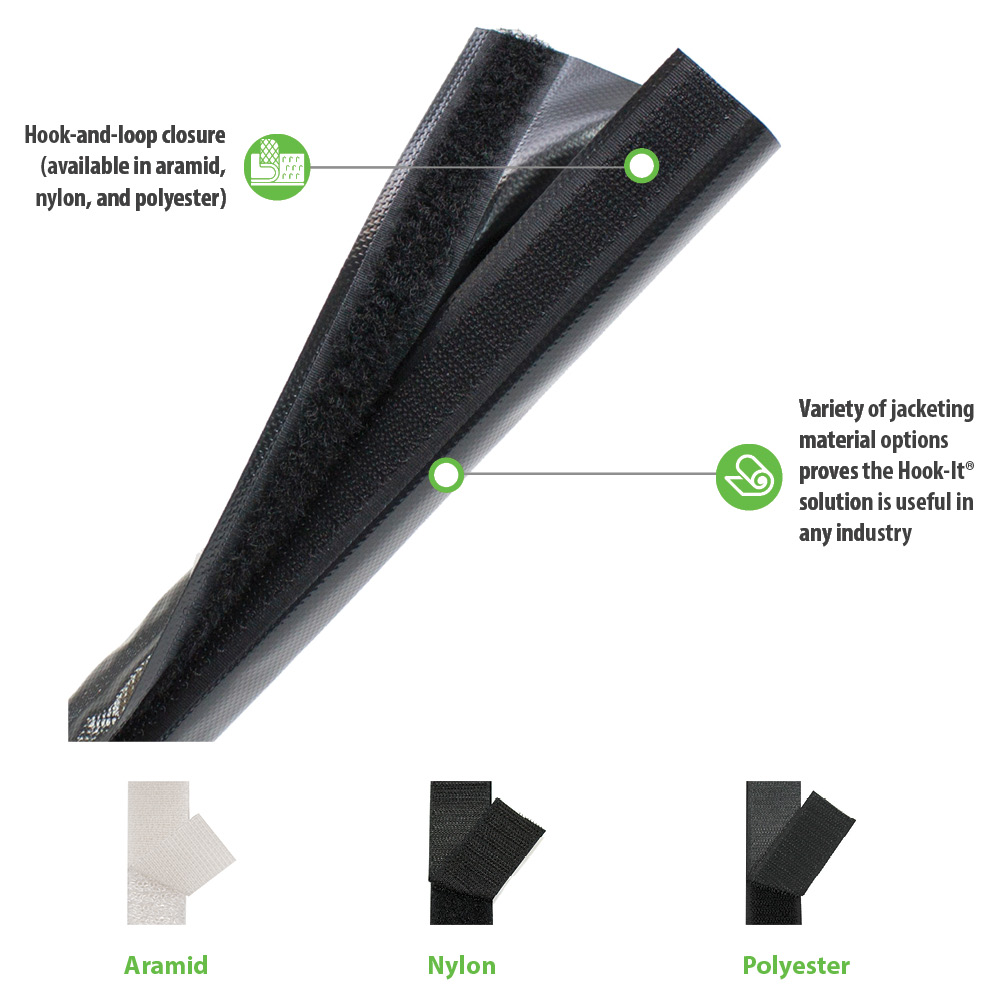

Hook-It® has no tool required for install or re-entry, making it useful in hard-to-reach or frequently accessed areas. The hook-and-loop closure is available in different materials such as Nylon, Polyester, and Aramid. Although primarily designed for light-duty cable applications, the variety of different jacket material options allow the Hook-It® solution to prove itself useful in almost any industry or application.
Hook-It® (VNH) is the perfect marriage between quality manufactured MIL-SPEC materials and exceptional cable management. The VNH material is waterproof and provides hydrocarbon fluid resistance, along with excellent abrasion resistance in just about any environment. The hook-and-loop installation and removal is easy to use, yet it will stay securely closed when needed.
Able to withstand harsh indoor and outdoor environments, and low or high temperature extremes, Hook-It® (VNH) has its own National Stock Number (NSN) for the 1” diameter version. This product has been tried and tested, and has been proven to be the perfect cable protection solution.
VNH: This material is a polyvinylchloride coated nylon fabric that is waterproof and flame-retardant. The material meets MIL-SPEC MIL-C-20696, Type II, Class 2 and can be used with many types of closure methods, including RF sealing. This material is available in other colors, such as white, orange, red, yellow, green and the standard black.
|Minimum Operating Temperature||-67 ° F (-55 ° C )|
|Maximum Operating Temperature||167 ° F (75 ° C )|
Please contact us for custom needs. We have a solution for you!
|Shape of Installation||Round|
|Cable Diameter||0.5" 0.625" 0.75" 0.875" 1.0" 1.125" 1.25" 1.375" 1.5" 1.625" 1.75" 1.875" 2.0" 2.125" 2.25" 2.375" 2.5" 2.625" 2.75" 2.875" 3.0" 3.125" 3.25" 3.375" 3.5" 3.625" 3.75" 3.875" 4.0" 4.125" 4.25" 4.375" 4.5" 4.625" 4.75" 4.875" 5.0" 5.125" 5.25" 5.375" 5.5" 5.625" 5.75" 5.875" 6.0" 6.5" 7.0" 7.5" 8.0" Custom|
|Closure||1" Hook and Loop (Nylon) 1 1/2" Hook and Loop (Nylon) 5/8" Hook and Loop (Nylon)|
|Thread Type||Nylon Black Thread|
|Flame Retardant||Fed-Std-191 Method 5903|
|Temperature Range||-55° to 75°C (-67° to 167°F)|
|Tensile Strength||225 Warp; 225 Fill|
|Mil-Spec||Mil-C-20696, Type II, Class 2|
|Temperature Range||-57° to 93°C (-71° to 199°F)|
|Ratings||GSA Spec A-A-55126, Type II, Class 1|
|Ratings||VT-295, Type II, Class A|
|Tensile Strength||11.8 lbs min.|
|Material||Bonded, twisted Polyamide filaments|
|Flammability||Flame retardant, melts|
|Color||Black, White others available upon request|
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitabilituriy for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2019 The Zippertubing® Company, Chandler, Arizona.
