HeatReflect®

The HeatReflect® family of products are high-temperature, fiberglass-reinforced, heat-reflective tapes. These tapes provide excellent thermal protection indoors or outdoors without the need to disconnect your components for installation.

HeatReflect® is available in two different styles. You can choose between a medium-weight material (ALP-500) which is great for larger applications or a light-weight material (ALS-5) which is much more flexible. Both styles of HeatReflect® tape are fiberglass-reinforced with an aluminum foil surface on one side and rated for 149°C (300°F) maximum operating temperatures.

The adhesive of these products features an acrylic, high-temperature, clear adheisve that provides a secure method of applying this tape to many different types of applications.

HeatReflect® (ALP)

Drawing No. ZT15-03-002

Part No. ZT15-03-002-1.0-X300.0-1U

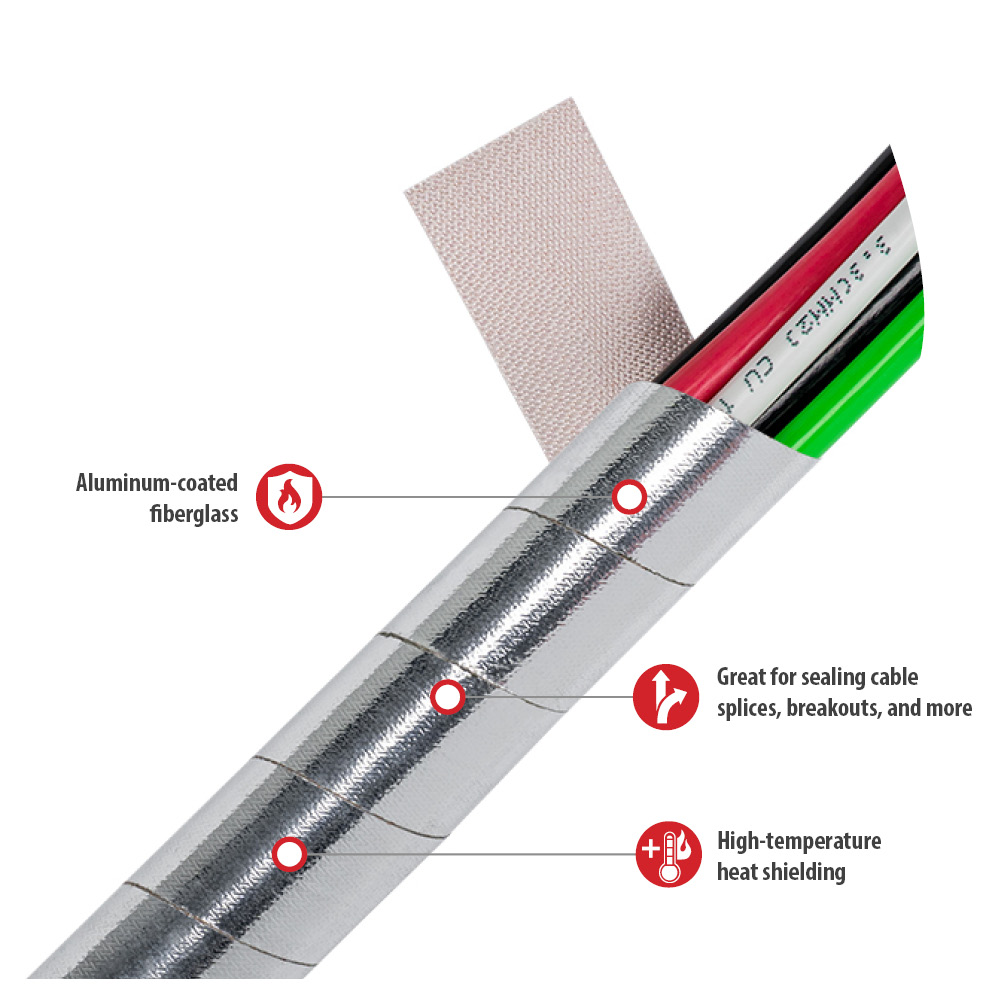

Medium-Weight, High-Temperature, Thermal-Protective, Aluminum-Coated Fiberglass Tape - Up To 300°F

  • Adhesive Closure System
  • Multi-Purpose Heat Barrier Protection
  • Flame Retardant & Flexible
  • Easy Toolless Installation
  • Low Installed Cost

Shape of Installation

ALL

Tape Width

Unit Length

Units Per Box

Quantity:

-+

$98.66

Minimum Quantity: 1
See bulk purchase pricing

Free Shipping on HeatReflect® (ALP) for U.S. customers online

Free Standard Shipping for all online U.S. orders!

HeatReflect® (ALP) is a medium-weight, fiberglass-reinforced, high-temperature tape that is coated with polyurethane and features an aluminum foil surface on one side.

This thermal-reflective tape is intended to be used in applications where high-temperature heat protection is required for either indoor or outdoor electrical wires, cables, hoses or pipes. HeatReflect® (ALP) can withstand continuous temperatures of up to 300°F.

The acrylic, high-temperature, clear adhesive backing provides a secure method of applying the tape to many types of installations and applications where thermal reflective protection is required.

The material used in HeatReflect® (ALP) tape has been tested to SAE J 2302 requirements.

Benefits

  • Heat Reflective Tape
  • Fits a multitude of cable diameters
  • Self-Extinguishing Aluminum/Polyurethane-coated fiberglass
  • Operational temperature range of -40° to +300°F

Features

Features:

  • High-temperature tape that requires NO disconnection of wires or cables
  • Thermal barrier and reflective covering properties
  • Easy installation with opportunities for cable splices, branch-outs and transitions
  • Resistant to many types of fluids and oils
  • Works seamlessly with our Heat-Wrap® (ALP)

Related Products

HeatReflect® (ALP) product image
HeatReflect® (ALP)
Medium-Weight, High-Temperature, Thermal-Protective, Aluminum-Coated Fiberglass Tape - Up To 300°F...

$98.66

Learn More
Heat-Wrap® product image
Heat-Wrap®
Adhesive Closed, Wrap Around Heat Barrier, Up to 149°C...
Learn More
HeatReflect® (ALS) product image
HeatReflect® (ALS)
Lightweight, Highly-Flexible, High-Temperature, Thermal-Protective, Aluminum-Coated Fiberglass Tape - Up To 300°F...

$262.24

Learn More

Product Specifications

Material Thickness 0.021"
Shelf Life 12 months
Maximum Operating Temperature 300 ° F (149 ° C )
Minimum Operating Temperature -40 ° F (-40 ° C )
Fluid Resistance Excellent
Thermal Effectiveness SAE J2302
Flammability Self-extinguishing

Available Attributes

Please contact us for custom needs. We have a solution for you!

Shape of Installation ALL
Tape Width 1.0" Wide
Unit Length 25 ft. Roll
Units Per Box Single Unit 2 Roll Pack

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitabilituriy for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2018 The Zippertubing® Company, Chandler, Arizona.
