Flex-Shield

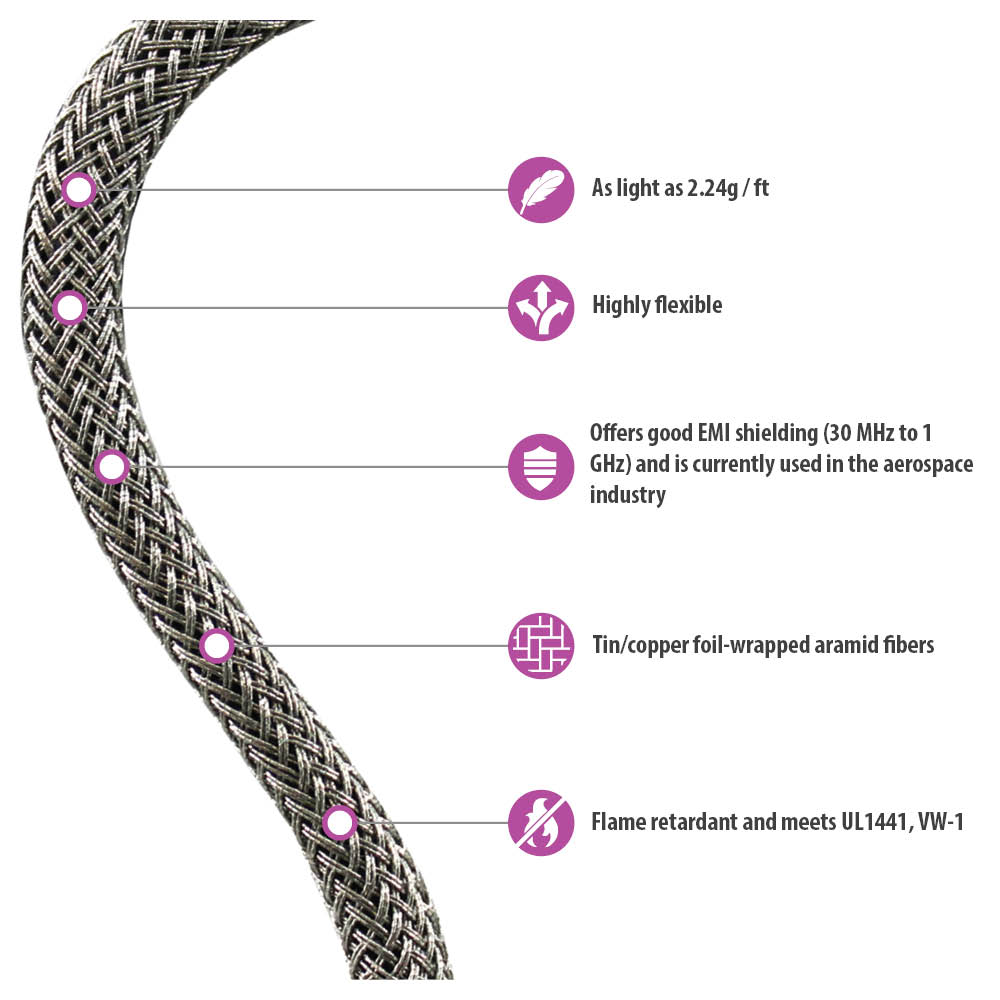

Flex-Shield is a high-performance, EMI shielding, expandable braid that is lightweight, flexible and is available with or without a ground. The fiber cores are made of high-temperature meta Aramid Fiber (Nomex) and are individually wrapped with a Tinned-Copper Foil. The fibers are braided together at a low braid angle to create a tubular product that can expand and contract to a limited degree for a perfect cable fit.

These foil-wrapped fibers create a sleeve that provides good EMI protection and yields a material with outstanding flex-life. This product is intended for high-flex, high-temperature, and environmentally tough applications.

Flex-Shield is currently in use on several aerospace applications where light weight and high performance are needed. The material meets UL1441, VW-1 (1/8 thru 3/4" sizes only) for flammability and has an operational temperature range of -40° to 150°C (-40° to 302°F).

Flex-Shield (HP)

Drawing No. ZT01-19-001

Part No. ZT01-19-001-0.125-X300.0

Tin/Copper EMI-Shielded Expandable Sleeving, Aramid Core

  • Offers good EMI shielding (30 MHz to 1 GHz) and is currently used in the aerospace industry
  • Flex-Shield&trade is extremely flexible & lightweight, and is perfect for high-temperature applications (302°F)
  • This product is flame retardant, and meets UL1441, VW-1 (1/8 through 3/4" sizes only)

Cable Diameter

Unit Length

Shielding

Quantity:

-+

$174.18 EA

Minimum Quantity: 1

Flex-Shield is a high-performance, EMI shielding, expandable braid that is lightweight, flexible and is available with or without a ground. The fiber cores are made of high-temperature meta Aramid Fiber (Nomex) and are individually wrapped with a Tinned-Copper Foil. The fibers are braided together at a low braid angle to create a tubular product that can expand and contract to a limited degree for a perfect cable fit.

These foil-wrapped fibers create a sleeve that provides good EMI protection and yields a material with outstanding flex-life. This product is intended for high-flex, high-temperature, and environmentally tough applications.

Flex-Shield is currently in use on several aerospace applications where light weight and high performance are needed. The material meets UL1441, VW-1 (1/8 thru 3/4" sizes only) for flammability and has an operational temperature range of -40° to 150°C (-40° to 302°F).

Related Products

Product Specifications

Please contact us for custom needs. We have a solution for you!

Shape of Installation Round
Cable Diameter 0.125" 0.375" 0.50" 0.75" 1.0" 1.25" 1.50"
Unit Length 25 ft. Roll 328 ft. Roll
Shielding Shielded Expandable Braid Shielded Expandable Braid w/ Ground
Shielding Effectiveness

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitabilituriy for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2018 The Zippertubing® Company, Chandler, Arizona.
