ZTT® (TPU)

A halogen-free, pull-through cable bundling solution with a durable 20 mil fire-retardant jacket and a nylon cloth leader.

Drawing Number(s): ZT19-10-003

ZTT® (TPU)
Halogen Free RoHS

Select product options

+ Please fill in at least one field.
Selected Part Number:ZT19-10-003-0.25-W
Get A Quote

Overview

ZTT® (TPU)

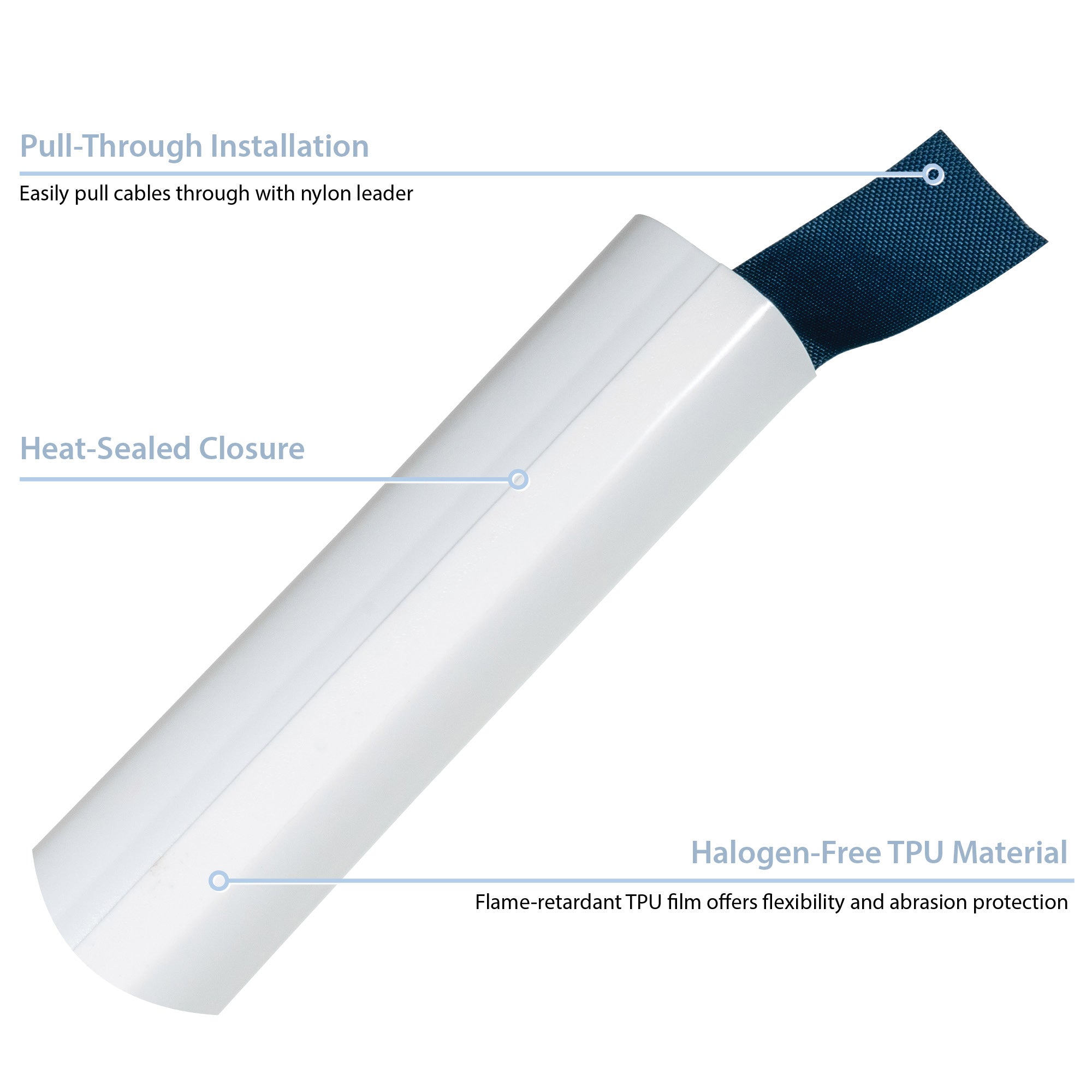

  • Fire-retardant, halogen-free thermoplastic polyurethane film material

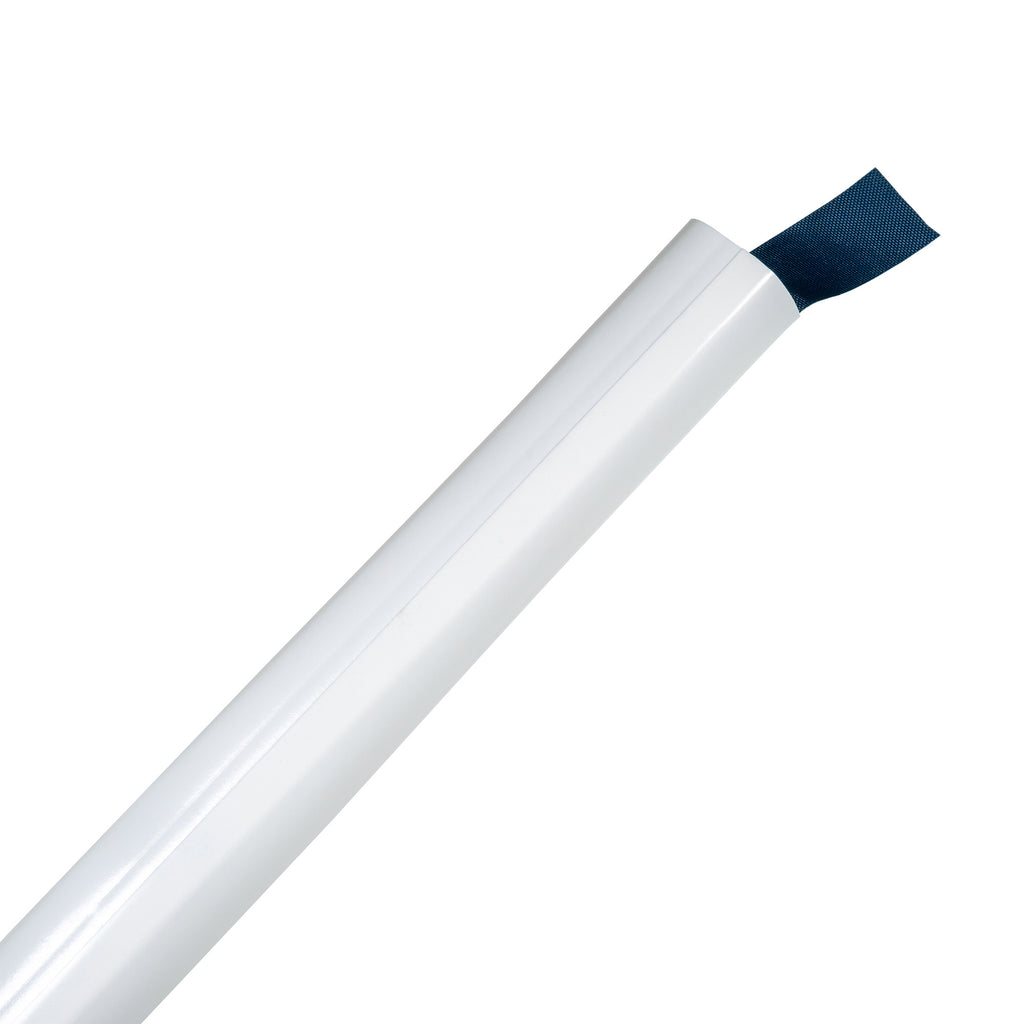

  • Pre-installed, nylon cloth leader allows for easy pull-through of wires
  • Can be cut to any desired length for versatility in uses

ZTT® (TPU) is a halogen-free cable management solution featuring TPU jacketing and a nylon cloth leader. The all white jacketing is made from a thermoplastic polyurethane material providing flexibility, fluid resistance, abrasion resistance and best fire resistance — ideal for medical or clean room* applications. The pre-installed, nylon cloth leader is a woven fabric made from a DuPont® type 6, mid-dull nylon yarn, which facilitates an easier pull-through method for wire or cable installation. No additional tools are required for installation, and jacketing can be cut to length by using a standard pair of scissors.

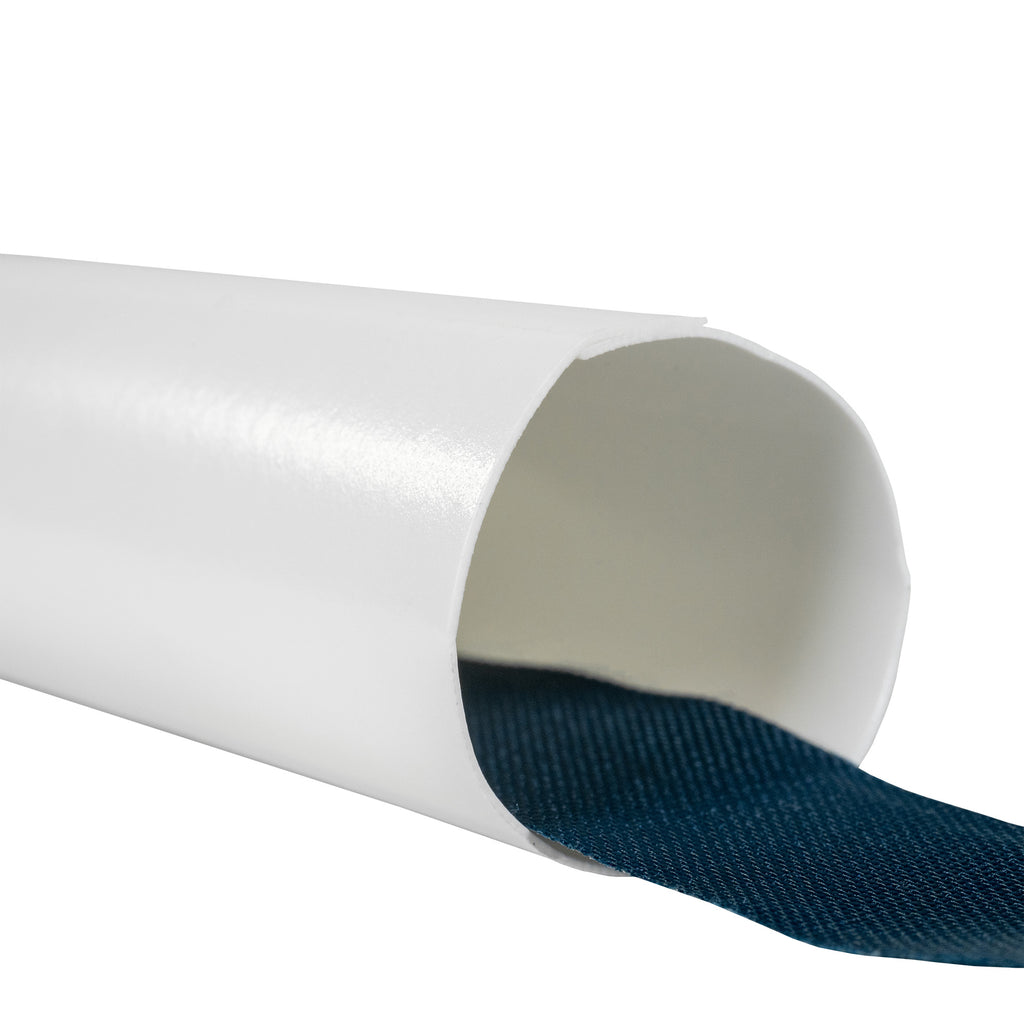

ZTT® (TPU) is manufactured by heat-sealing one edge of the jacketing to create a teardrop style solution. This allows for complete security and protection of components inside from fluid and debris exposure. If your application demands halogen-free, 360-degree cable bundling that can be installed without tools, ZTT® (TPU) is the perfect solution.

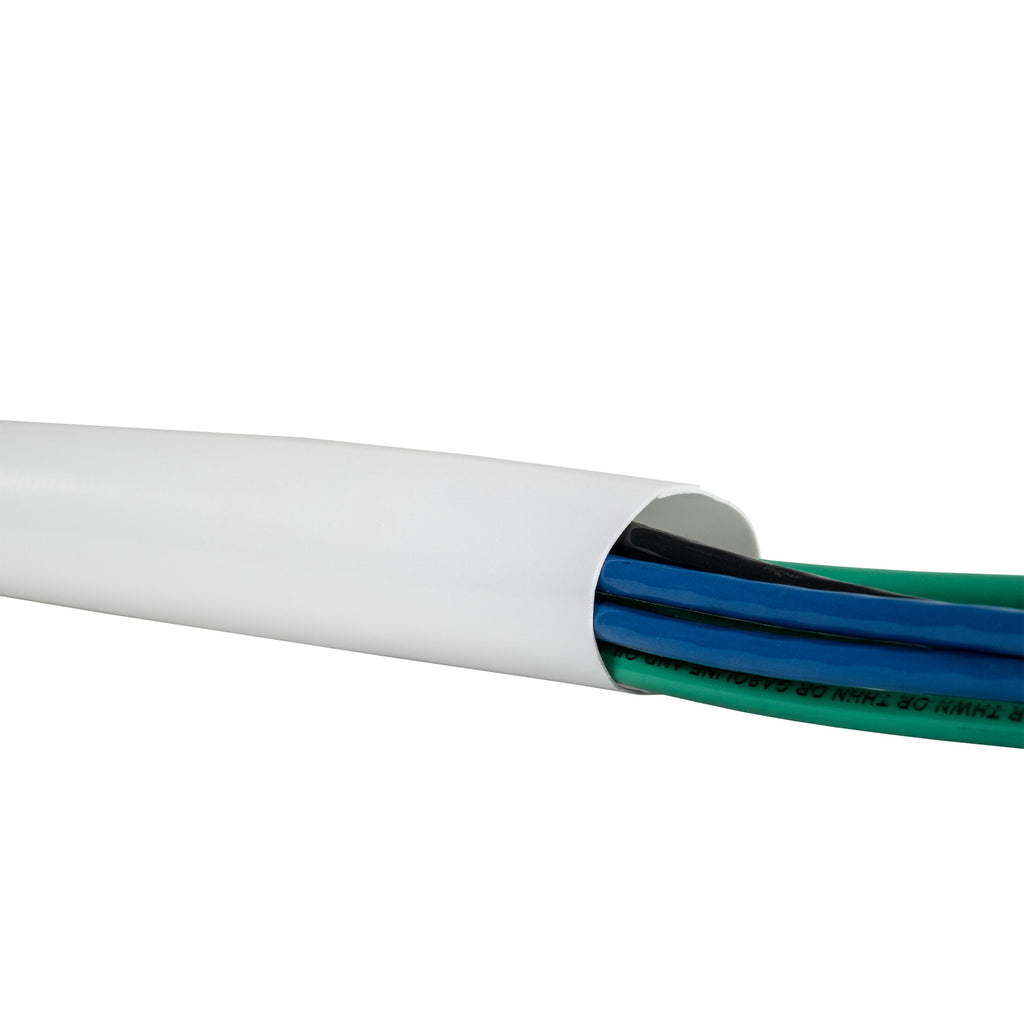

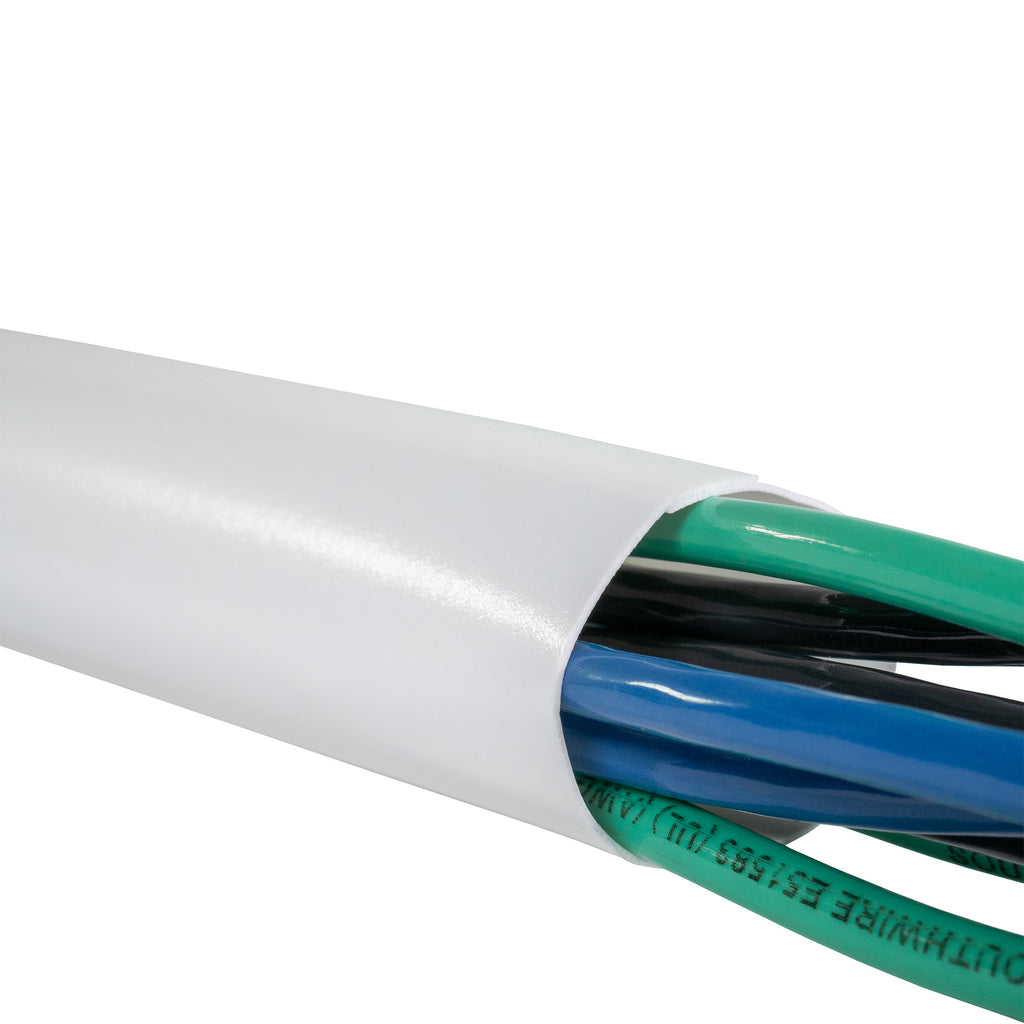

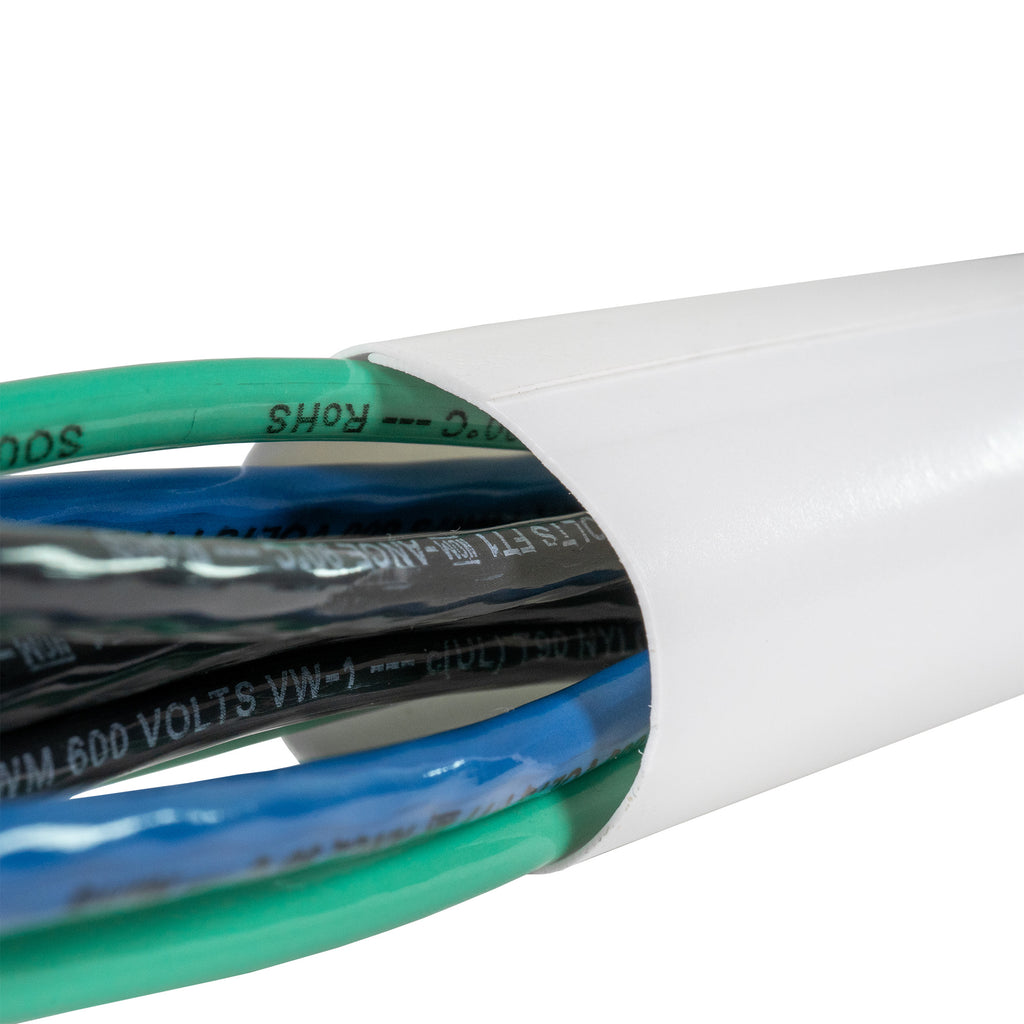

ZTT® (TPU) is offered for single cables or small bundles of wires, and can be RF welded to other polymer tracks or films. The operational temperature ranges from -40°F to 257°F (-40°C to 125°C). Standard diameters range from 0.25” to 2”, with custom shapes and sizes available upon request.

*ZTT® (TPU) is not manufactured using a clean room in sterile conditions, but with the right procedures, it could be used in the medical field, including in hospitals, operating rooms, trauma centers, and emergency rooms.

Specifications

Overall Performance

  • Diameter: 0.25" (1/4)
  • Closure: Heat-Sealed
  • Material: TPU-20
  • Halogen Free: Yes
  • Maximum Operating Temperature: 257°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-6
  • Shelf-Life: 60 months

TPU-20

  • Durability: Better
  • REACH: Compliant
  • Elongation: 350%
  • Flammability: Self-extinguishing
  • Halogen Free: Yes
  • Color: White
  • Thickness: 0.020"
  • Thickness Variance: +/- 0.001"
  • Material: Thermoplastic polyurethane
  • Maximum Operating Temperature: 257°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Tensile Strength: 4,300 psi.
  • Ozone Resistance: Stage 0, "Crack Free"

Heat-Sealed

  • Closure: Heat Sealed
  • Material: Heat Sealed
Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

Similar products

Z flex® (PFR) Channel-Wrap® (PFR) Z flex® (63)
NAME Z FLEX® (PFR) CHANNEL-WRAP® (PFR) Z FLEX® (63)
DESCRIPTION A military-grade, flame-retardant, pull-through cable and wire protection solution that has a nylon cloth leader. A flexible, wrap-around robotic cable management sleeve with a hook-and-loop closure that bundles and protects crucial wires and cables. A pull-through bundling sleeve equipped with a nylon cloth leader, made of a 0.02” thick military-grade material that offers protection from abrasion & fluid.
Closure Heat-Sealed Hook-and-Loop (Nylon) Heat-Sealed
RoHS RoHS-6 RoHS-10 RoHS-6
Abrasion Resistance Best Best Best
Installation Type Pull Through Wrap-Around Pull Through
Purpose Sleeve Sleeve Sleeve
Min Temperature Extreme Extreme Low
Minimum Operating Temperature -67°F -67°F -4°F
Max Temperature Moderate Low Moderate
Maximum Operating Temperature 224°F 199°F 221°F
Flexibility Best Best Better
View View View

ZTT® (TPU)

A halogen-free, pull-through cable bundling solution with a durable 20 mil fire-retardant jacket and a nylon cloth leader.

Drawing Number(s): ZT19-10-003

Selected Part Number: ZT19-10-003-0.25-W

  • Fire-retardant, halogen-free thermoplastic polyurethane film material
  • Pre-installed, nylon cloth leader allows for easy pull-through of wires
  • Can be cut to any desired length for versatility in uses
  • Features

  • Single-extruded 20 mil TPU jacketing material that is halogen free and flame retardant
  • Clean, white appearance perfect for medical industry applications
  • Operational temperature range of -40°F to 257°F (-40°C to 125°C)
  • Benefits

  • Excellent flexibility, abrasion, chemical, and overall covering properties
  • Jacketing is flexible, abrasion resistant and fire retardant
  • Simply pre-wrap components, then use cloth leader for easy pull-through
  • ZTT® (TPU)

    ZTT® (TPU)

    MATERIAL SPECIFICATIONS

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
