Zip-Wrap® (PVL) Flexible Cable Bundling

A lightweight, abrasion-resistant jacketing with a zipper offered in many color combinations for protective, color-coded cable bundling.

Drawing Number(s): ZT98-07-011

Zip-Wrap® (PVL) Flexible Cable Bundling
RoHS Military Grade

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT98-07-011-0.5-B-B
Get A Quote

Overview

Zip-Wrap® (PVL) Flexible Cable Bundling
  • PVL-10 jacketing is military grade with meeting MIL-C-43006G, Type II, Class 1
  • Nylon zipper closure allows for re-entry to components as needed
  • Jacketing, zipper, and thread are available in a wide range of colors for a completely custom solution

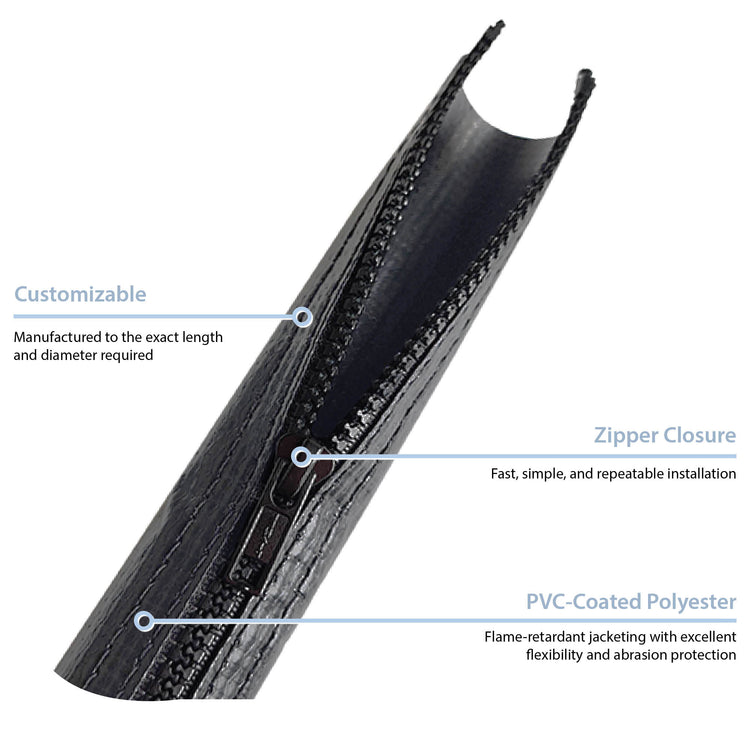

Professionally bundle your messy wires or cables. Zip-Wrap® (PVL) is a lightweight, abrasion-resistant, zipper sleeve comprised of flame-retardant polyester fabric that is coated with Polyvinyl Chloride (PVC) on both sides.

This product is versatile and well suited for any round, flat, or rectangular cable bundling application. You now have the ability to quickly wrap, zip, and enjoy.

This product is comprised of a molded Nylon tooth plastic zipper, PVL-10 coated fabric material and is sewn using a nylon thread. The zipper style of closure allows for a seamless installation without the need for tooling on assemblies that require re-entry after your installation.

Zip-Wrap® is ideal for cable bundles, wire harnesses, hoses and other applications where flexibility, strength, chemical resistance and abrasion protection is needed. Custom colors, lengths, widths, closure options as well as jacketing materials are also available.

Specifications

Overall Performance

  • Diameter: 0.5" (1/2)
  • Closure: Zipper (Nylon)
  • Material: PVL-10
  • Maximum Operating Temperature: 180°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf-Life: 36 Months
  • Zipper Color: Black

PVL-10

  • Mil-Spec: MIL-C-43006G, Type II, Class 1
  • REACH: Compliant
  • Chemical Resistance: Good
  • Flame Retardant: FED-STD-191 Method 5903
  • Thickness: 0.010"
  • Material: PVC-Coated Polyester
  • Maximum Operating Temperature: 180°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 120 lbs/min (warp); 100 lbs/min (fill)

Zipper (Nylon)

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar products

    Zip-On® (63) Military-Grade Cable Bundling Zip-On® (PFR) Polyurethane Cable Bundling Z-Coil Self-Closing Cable Jacketing
    NAME ZIP-ON® (63) MILITARY-GRADE CABLE BUNDLING ZIP-ON® (PFR) POLYURETHANE CABLE BUNDLING Z-COIL SELF-CLOSING CABLE JACKETING
    DESCRIPTION A wrap-around cable bundling and protection solution that has a PVC, military-grade jacket that is abrasion and fluid resistant, with a pressure track. A wrap-around cable protection solution that is flexible, resistant to abrasion and fluids, and has a pressure track closure. A self-closing wire bundling and protection sleeve made from self-extinguishing PET material—ideal for high-volume requirements.
    Closure Z-Track (PVC), R-Track (PVC), D-Track (PVC), EZ-Track (PVC) Z-Track (PFR) Self-Closing
    RoHS RoHS-10 RoHS-10 RoHS-10
    Abrasion Resistance Best Best Better
    Installation Type Wrap-Around Wrap-Around Wrap-Around
    Purpose Sleeve Sleeve Sleeve
    Min Temperature Low Moderate Extreme
    Minimum Operating Temperature -4°F -32.8°F -58°F
    Max Temperature Moderate Low Moderate
    Maximum Operating Temperature 221°F 194°F 302°F
    Flexibility Better Best Best
    View View View

    Zip-Wrap® (PVL) Flexible Cable Bundling

    A lightweight, abrasion-resistant jacketing with a zipper offered in many color combinations for protective, color-coded cable bundling.

    Drawing Number(s): ZT98-07-011

    Selected Part Number: ZT98-07-011-0.5-B-B

  • PVL-10 jacketing is military grade with meeting MIL-C-43006G, Type II, Class 1
  • Nylon zipper closure allows for re-entry to components as needed
  • Jacketing, zipper, and thread are available in a wide range of colors for a completely custom solution
  • Features

  • Wide range of color combinations for color-coded bundling
  • Easy installation, no tools required
  • Operational temperature range of -40°F to 180°F (-40°C to 82°C)
  • Benefits

  • Jacketing offers better resistance to abrasion for use in rugged conditions
  • Zipper closure allows for installation in the production environment without disconnection of wires or cables
  • Lightweight and flexible for flexing components
  • Zip-Wrap® (PVL) Flexible Cable Bundling

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
