Zip-Shield® (PFR) Cable Bundling with EMI Shielding

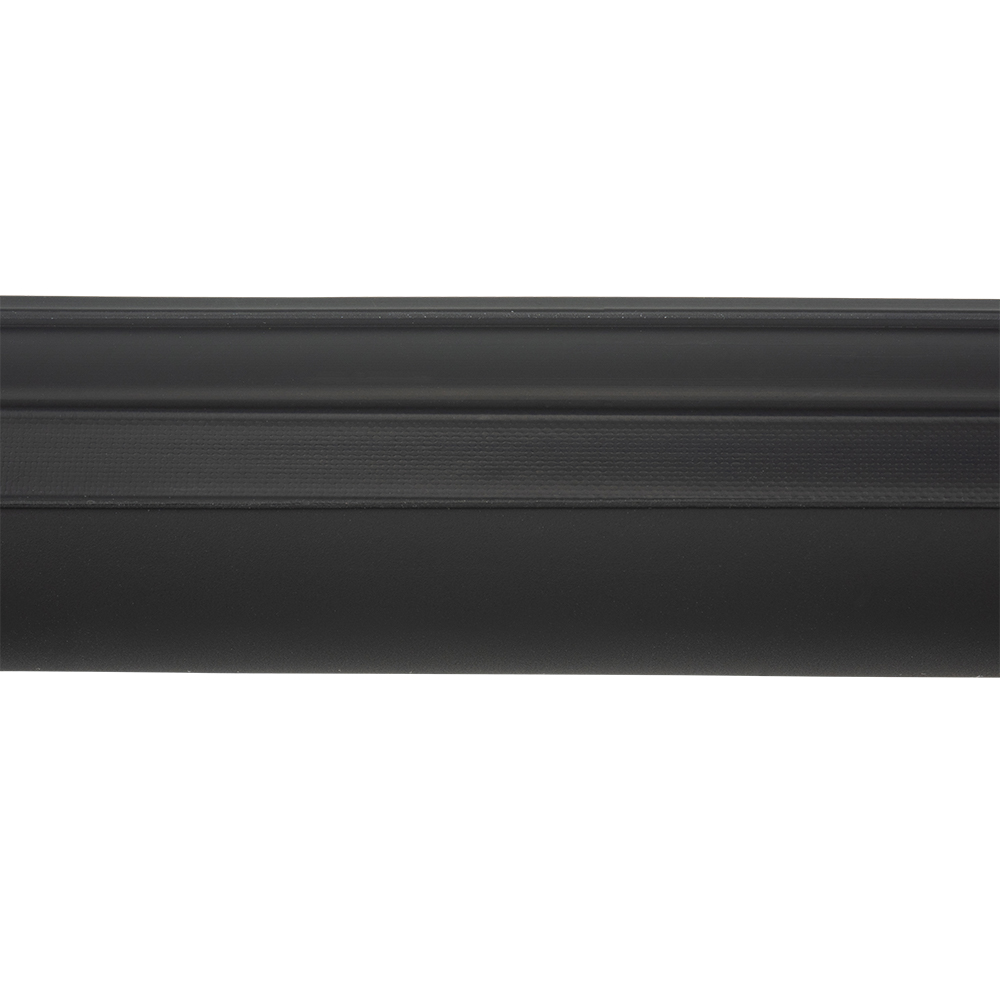

A highly flexible, wrap-around PFR jacket with a sewn-in EMI-shielding cloth, mesh or foil and pressure track closure.

Drawing Number(s): ZT97-17-170, ZT15-17-005

Zip-Shield® (PFR) Cable Bundling with EMI Shielding
RoHS Military Grade

Select product options

Please fill in at least one field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Please fill in the field.
Selected Part Number:ZT97-17-170-0.375-B-B
Get A Quote
WARNING: Cancer and Reproductive Harm | www.P65Warnings.ca.gov

Overview

Zip-Shield® (PFR) Cable Bundling with EMI Shielding
  • PFR jacketing offers resistance to abrasion and most fluids
  • Pressure track closure system for a secure seal
  • EMI-shielding cloth is lightweight and corrosion resistant

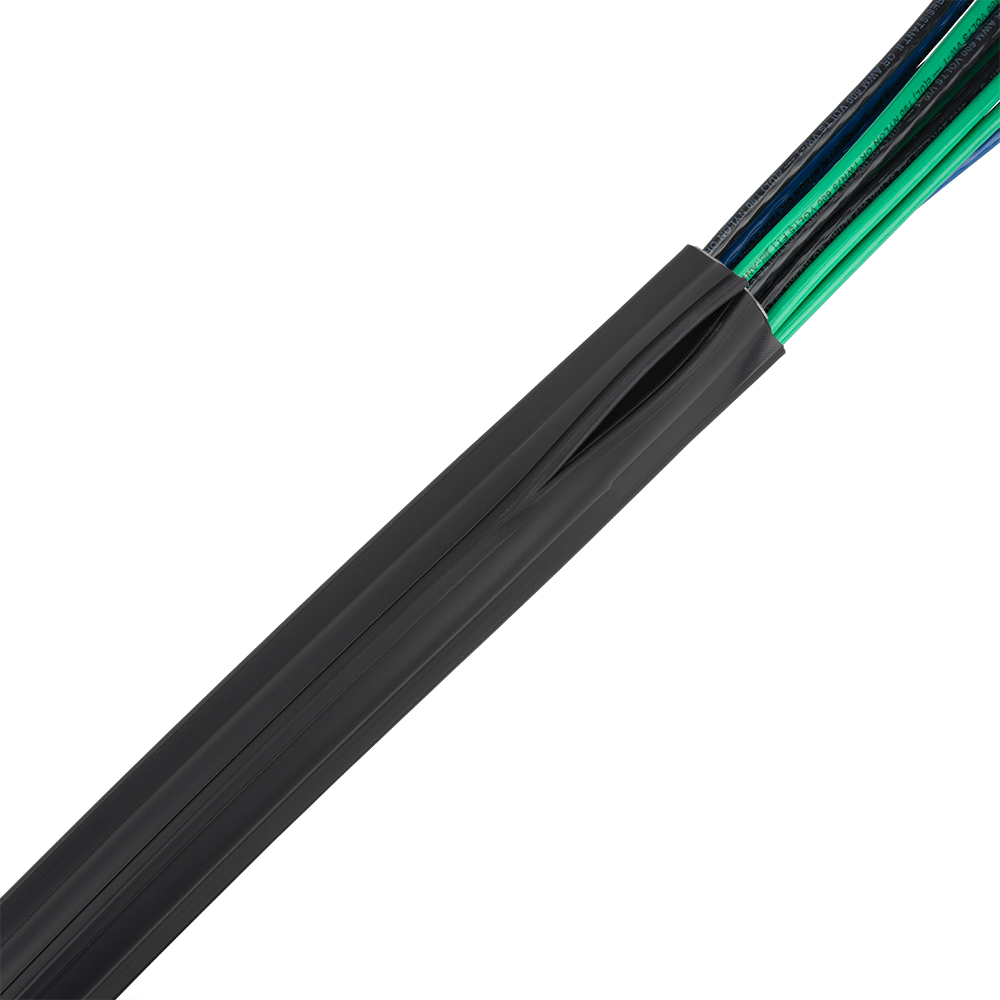

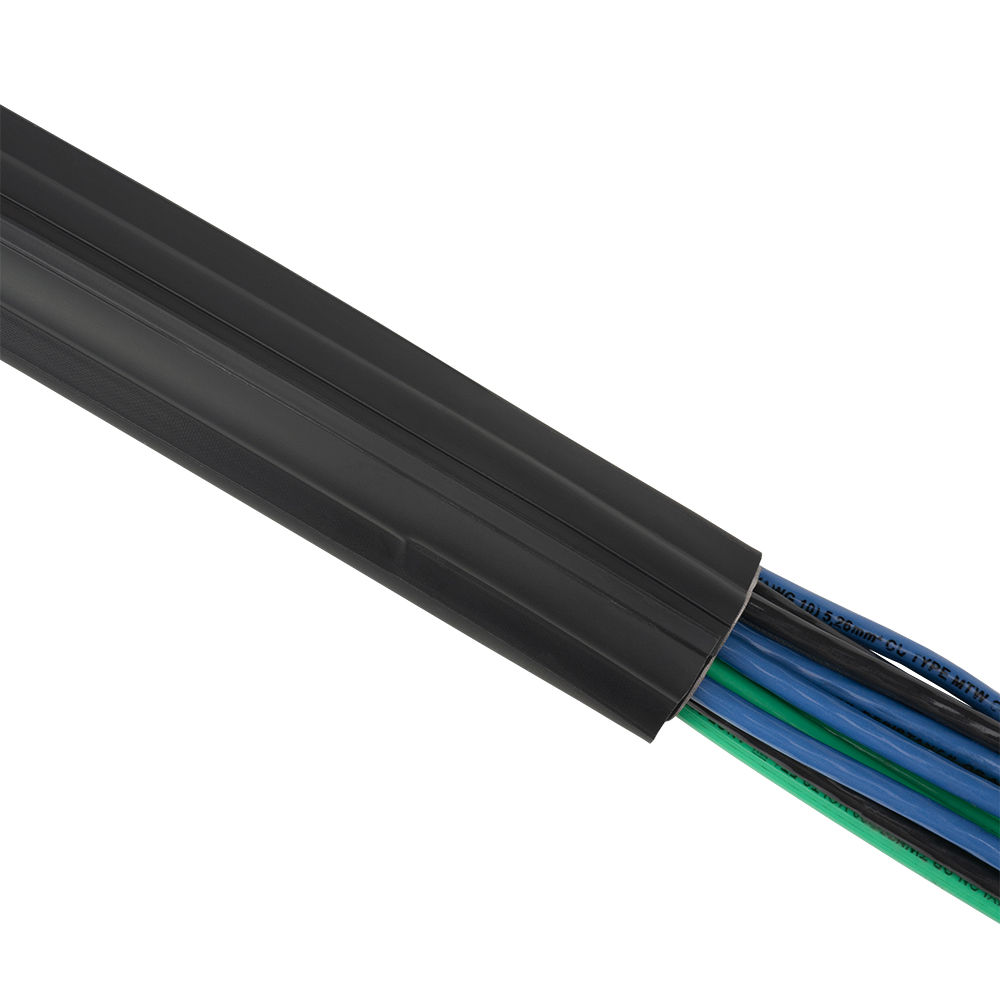

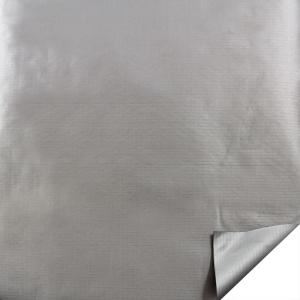

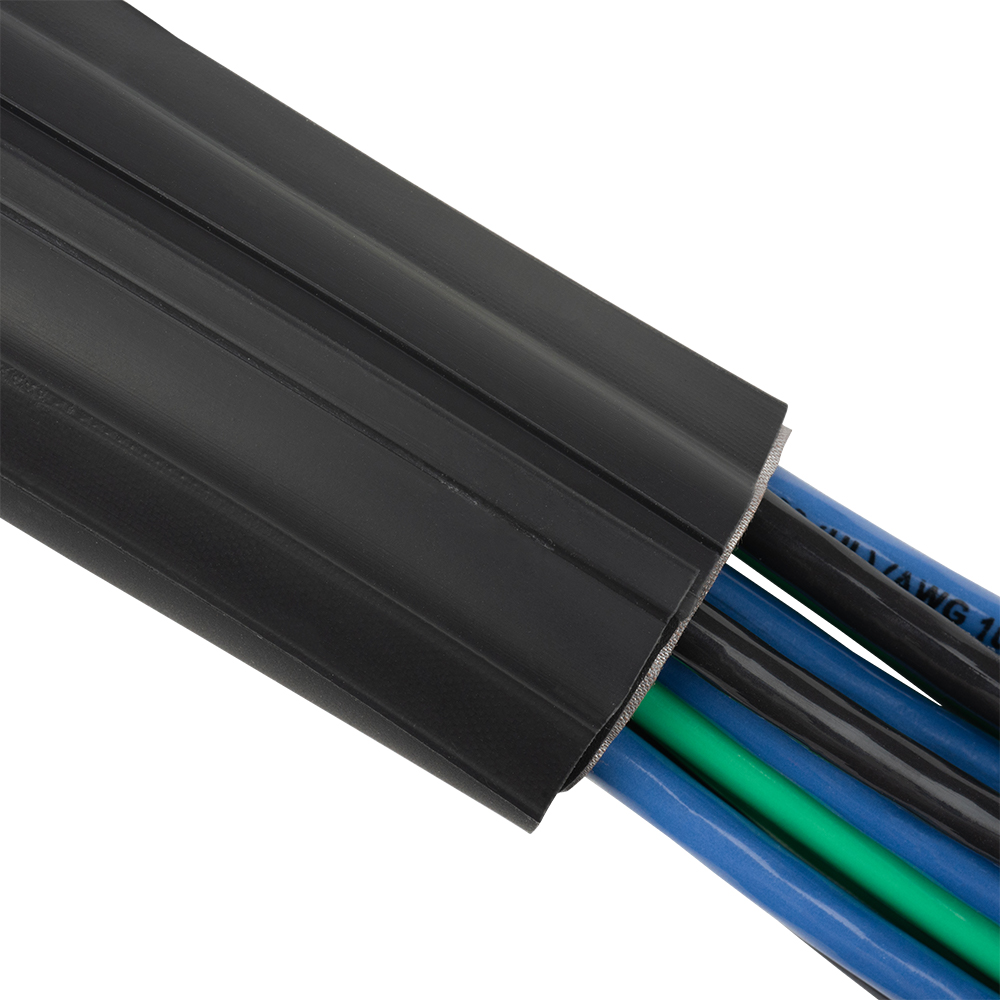

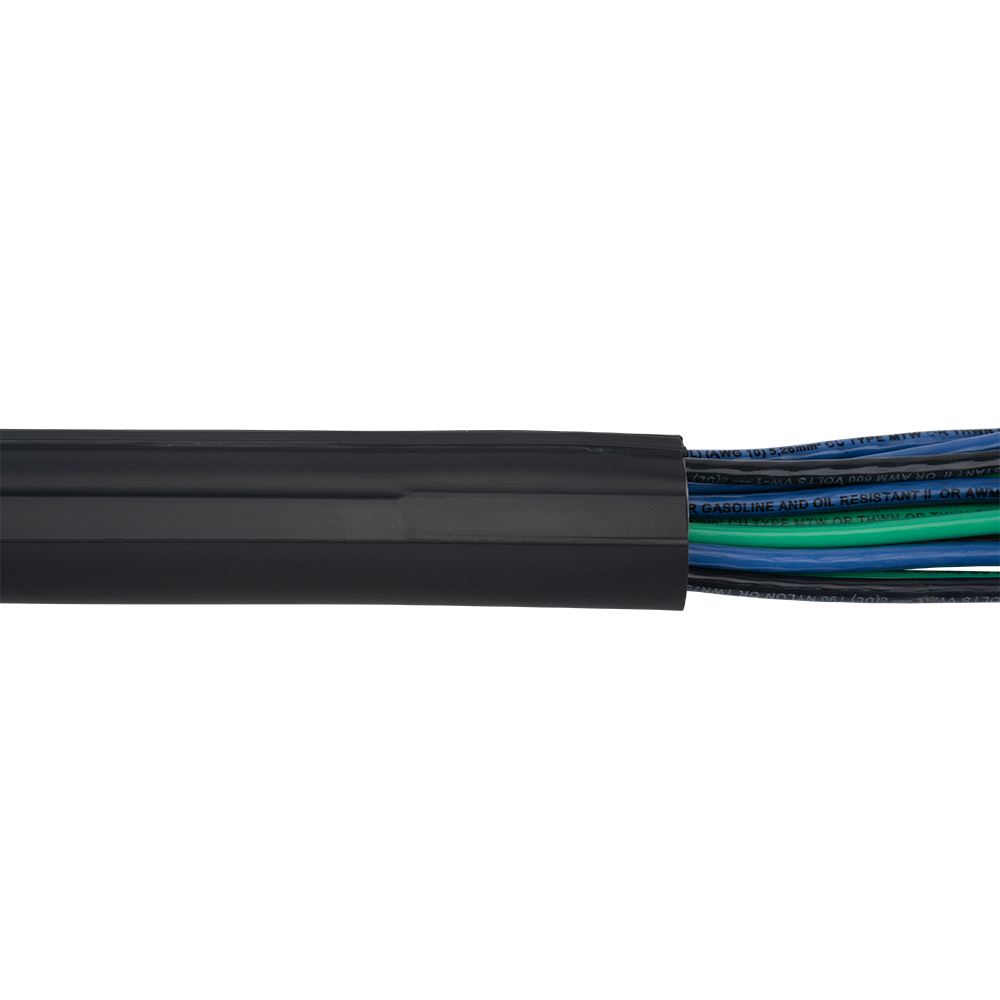

Zip-Shield® (PFR) is an EMI-shielding solution consisting of a wrap-around PFR jacket with a sewn-in EMI-shielding cloth, mesh or foil and a pressure track. The highly flexible PFR-18 material is flame retardant and military grade as well as resistant to abrasion and most fluids. The jacketing is also non-PVC, which makes it a good choice for many nuclear, aerospace and military applications where PVC materials are not permitted. The 3250 EMI shielding cloth offers protection from EMI, RFI and EMF, so you can be confident that your components will not be compromised by these damaging interferences.

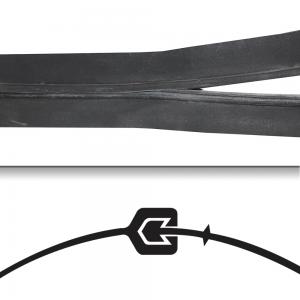

Zip-Shield® (PFR) is typically paired with Z-Track. The pressure track system will be easy to seal and offer a long-lasting closure, and if re-entry is required, you can easily break out components. The Z-Track is a versatile, medium-duty pressure track closure with an arrowhead-and-channel interlock system. The Z-Track can be sealed with our ZTZ-SP plier tool.

Specifications

Overall Performance

  • Diameter: 0.375" (3/8)
  • Closure: Z-Track (PFR)

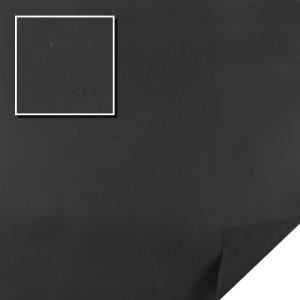

  • Material: PFR-18
  • Maximum Operating Temperature: 194°F
  • Minimum Operating Temperature: -36°F
  • RoHS: RoHS-10
  • Shielding: Z-3250
  • Shielding Material: Nickel Plated Copper

PFR-18

  • Mil-Spec: Mil-C-27072; Mil-C-13777; Mil-I-3930/21
  • Copper Corrosion: Mil-C-27072 & 13777
  • Dielectric Constant: 5.0 - 6.0
  • Dielectric Strength: 900 volts/mil
  • Elongation: 650%
  • Flame Retardant: UL 94 V-0
  • Fungus Resistance: Mil-Std-810, Method 508.3
  • Color: Black
  • Thickness: 0.018"
  • Material: Polyurethane Film
  • Maximum Operating Temperature: 225°F
  • Minimum Operating Temperature: -67°F
  • RoHS: RoHS-10
  • Shelf Life: 60 Months
  • Tensile Strength: 4,000 psi.
  • Ozone Resistance: No Cracks

Z-Track (PFR)

    Z-3250

      Z-7200

        SHX-4 (SnCuFe)

          SHX-4 (S/S)

            SH1 (Foil Shielding)

              Nylon Thread

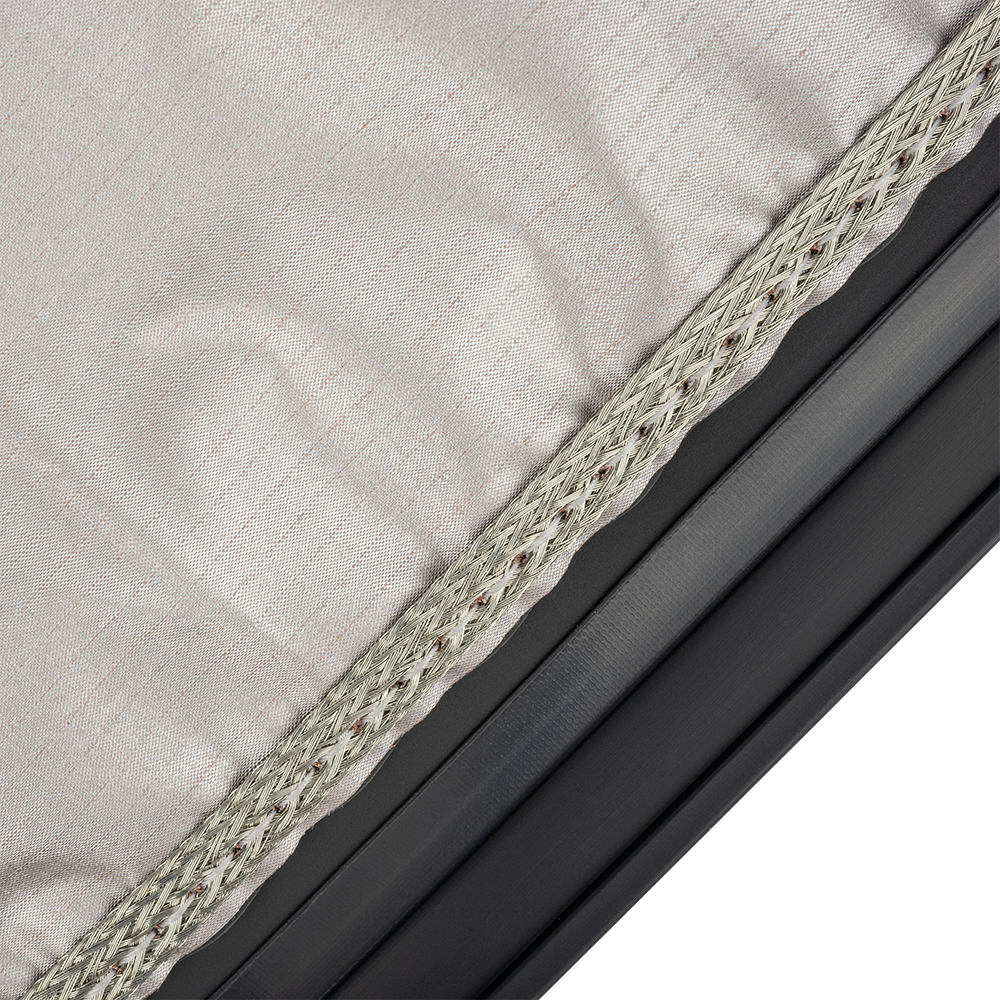

                15 AWG Braided Ground Straps

                  Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
