SHX-4 (SnCuFe) with Drawing Number: 3102-4

SHX-4 (SnCuFe)

Specification No. 3102-4

Tinned Copper/Steel Wire EMI Shielding Mesh, 4-Ply

  • EMI Shielding (500 KHz to 1 GHz)
  • Extremely Flexible & Durable
  • Withstands Lightening Strikes
  • Non Flammable
  • -55 to 204 C Operational Limit

Raw materials are not sold separately, please contact the sales department for any special requirements.

Material Specifications

Available Attributes

Material Color Bright Tin

SHX-4 (SnCuFe)

Shelf-Life 60 months
Material Thickness 0.030"
Ratings ASTM B-452, Grade 40HS; ASTM B-520, Class T40HS
Tensile Strength 110,000 psi
Surface Resistivity 1.159 MIN, 1.225 MAX @68 F (ohm/ft)
RoHS Compliant
Temperature Range -55° to 204°C (-67° to 399.2°F)
Shielding Effectiveness Good
Abrasion Resistance Good

Attenuation data was derived using procedures defined in MIL-STD-285 and tested by scientific applications international corporation (SAIC) EMI laboratories, San Diego, California

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2018 The Zippertubing® Company, Chandler, Arizona.

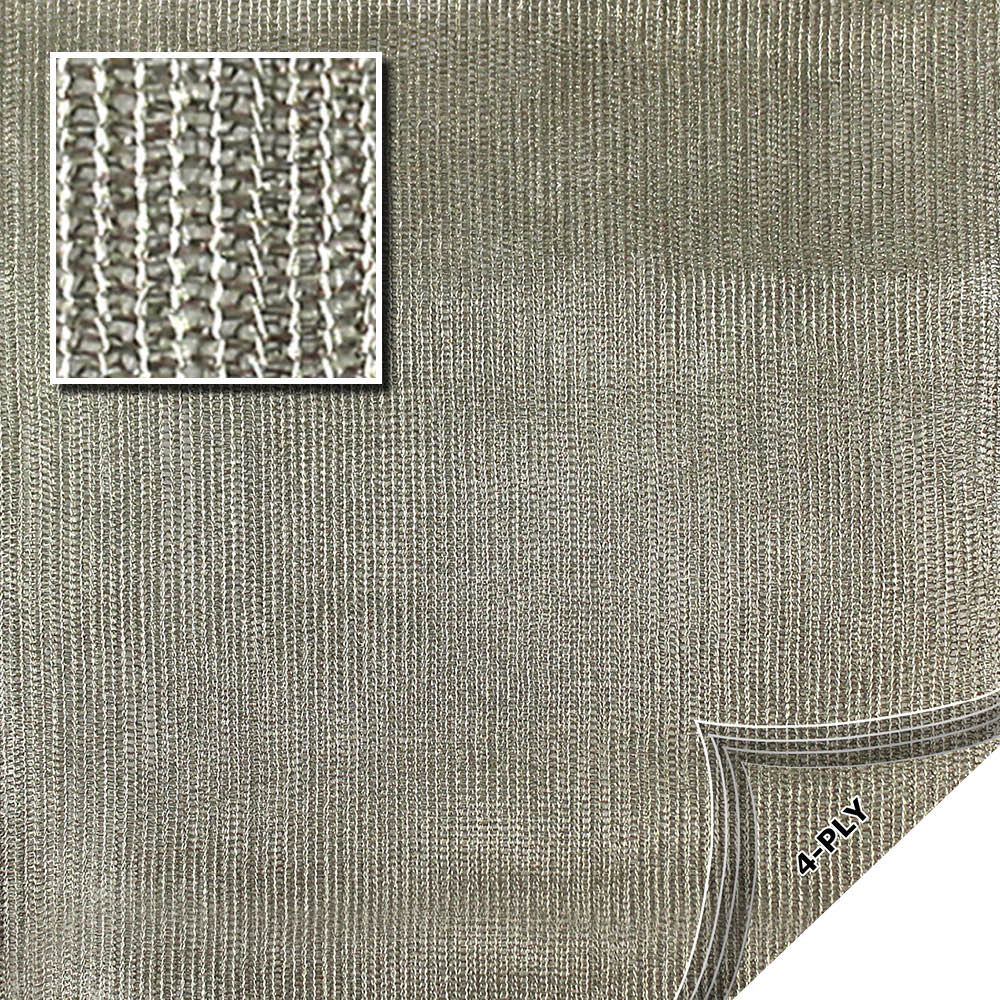

SHX-4 (SnCuFe) is a flexible 4 layer knitted wire mesh EMI shielding material that is made of Tin plated, Copper clad Steel wire. The knitted mesh design creates a highly flexible shield that unlike many tubular braids will not change attenuation performance when articulated. The knitted wire mesh maintains constant window spacing during cable assembly movement and as a result yields excellent EMI shielding performance from 500 KHz through 1 GHz. The material is highly conductive, rugged and is ideal for airborne applications where lightning strike grounding is required. The mesh can be added to most Zippertubing jacket materials to create an easy to install Zip-On EMI shielded assembly. SHX-4 shields come with a standard 15 AWG drain wire attached to simplify grounding.
