RPU-17 - Polyurethane Coated Polyster - 17 Mil

Reinforced Polyurethane Cable Jacket

Material Specification: 1122 RoHS REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

Overview

  • White in Color
  • Environmentally Friendly (Non-PVC)
  • Good Flexibility & High Tear Resistance
  • Flame Retardant (NFPA-701 & FAR 25.853a)
  • Multiple Closure Systems

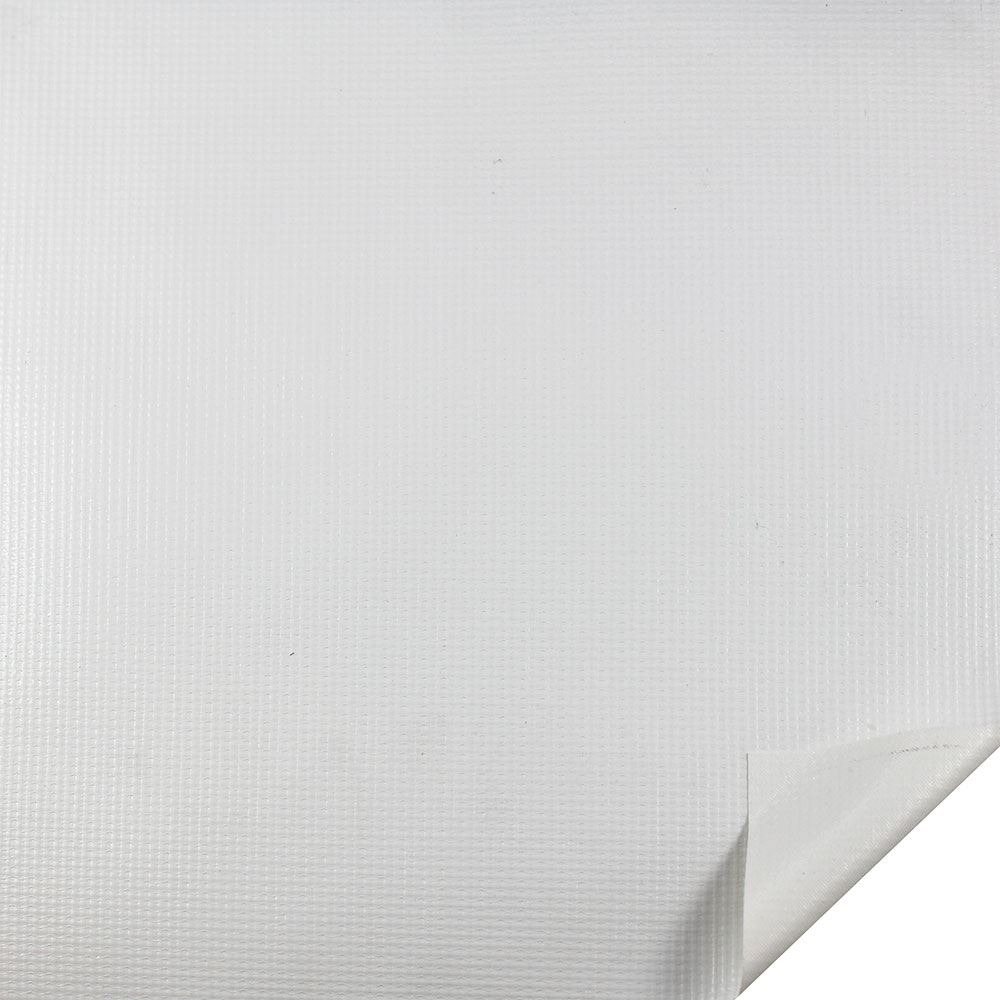

RPU-17 is a medium-weight, fire retardant poly(ether) urethane-coated polyester-fabric jacket material designed to provide a tough, flexible, non-PVC cable jacket. The Polyester-fabric core makes RPU-17 ideal in applications where a high degree of tear resistance is required. It can be combined with most Zippertubing EMI Shielding materials to create EMI-hardened jacket assemblies. Custom designs utilizing mechanical zippers, hook-n-loop, stainless steel snap buttons, pressure sensitive adhesives and track closures are available. RPU-17 is white in color, making it ideal for medical and clean room applications where PVC-based materials are restricted.

Specifications

  • REACH: Compliant
  • Flame Retardant: NFPA-701 (2 Sec.) and FAR-25.853a 12 sec. vertical
  • Thickness: 0.017"
  • Material: Polyether Urethane Impregnated PET
  • Maximum Operating Temperature: 160°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 60 months
  • Tensile Strength: 170 x 150 lbs/min
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

    RPH-14 - Polyurethane Coated Polyester Fabric - 14 Mil RPA-14 - Polyurethane Coated Aramid Fabric - 14 Mil FRC-15 Canvas Fabric - 15 Mil
    NAME RPH-14 - POLYURETHANE COATED POLYESTER FABRIC - 14 MIL RPA-14 - POLYURETHANE COATED ARAMID FABRIC - 14 MIL FRC-15 CANVAS FABRIC - 15 MIL
    DESCRIPTION A Flexible, Medium Weight, Polyurethane Coated Polyester Fabric, 14 mil A Strong, Medium-Weight, Polyurethane Coated Aramid Fabric Lightweight Multi-Purpose Canvas Jacket, 15 Mil
    RoHS RoHS-10 RoHS-10
    Abrasion Resistance Best Best
    Min Temperature Extreme Low Moderate
    Minimum Operating Temperature -67°F -4°F -22°F
    Max Temperature Moderate Moderate Low
    Maximum Operating Temperature 356°F 302°F 140°F
    Flexibility Better Better
    View View View

    RPU-17 - Polyurethane Coated Polyster - 17 Mil

    Reinforced Polyurethane Cable Jacket

    Material Sprcification: 1122

    • White in Color
    • Environmentally Friendly (Non-PVC)
    • Good Flexibility & High Tear Resistance
    • Flame Retardant (NFPA-701 & FAR 25.853a)
    • Multiple Closure Systems
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • REACH: Compliant
  • Flame Retardant: NFPA-701 (2 Sec.) and FAR-25.853a 12 sec. vertical
  • Thickness: 0.017"
  • Material: Polyether Urethane Impregnated PET
  • Maximum Operating Temperature: 160°F
  • Minimum Operating Temperature: -40°F
  • RoHS: RoHS-10
  • Shelf Life: 60 months
  • Tensile Strength: 170 x 150 lbs/min
  • DESCRIPTION

    RPU-17 is a medium-weight, fire retardant poly(ether) urethane-coated polyester-fabric jacket material designed to provide a tough, flexible, non-PVC cable jacket. The Polyester-fabric core makes RPU-17 ideal in applications where a high degree of tear resistance is required. It can be combined with most Zippertubing EMI Shielding materials to create EMI-hardened jacket assemblies. Custom designs utilizing mechanical zippers, hook-n-loop, stainless steel snap buttons, pressure sensitive adhesives and track closures are available. RPU-17 is white in color, making it ideal for medical and clean room applications where PVC-based materials are restricted.

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
