DVH-40 with Drawing Number: 1105

DVH-40

Specification No. 1105

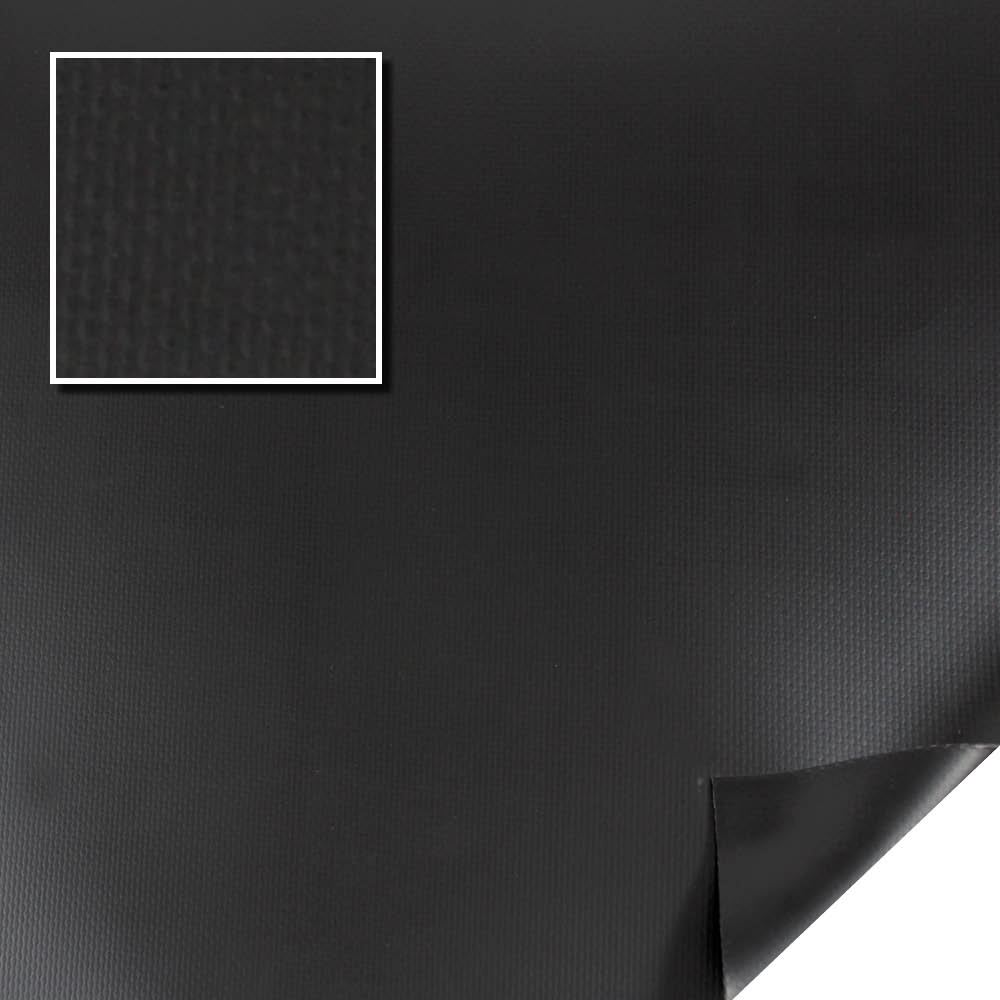

Heavy Duty PVC Coated Nylon/Polyester Jacket, 40 Mil

  • Durable & Good Wear Resistant
  • Outstanding Abrasion & Environmental Resistance
  • Moderate Flexibility
  • -40° to 82°C Operational Limit

Raw materials are not sold separately, please contact the sales department for any special requirements.

Material Specifications

Available Attributes

Material Color Black

DVH-40

Shelf-Life 36 months
Material Thickness 0.040"
Temperature Range -40° to 82°C (-40° to 179.6°F)
Tensile Strength 385 Warp; 125 Fill
Fluid Resistance Hydro Resist - 800 psi/min
Composition Woven Polyester impregnated with PVC
Coating Polyvinylchloride
Tear Strength 90 lbs/min (warp); 125 lbs/min (fill)
Fungicide No Growth
RoHS Compliant
Mil-Spec Mil-C-43006, Type I, Class 1
Abrasion Resistance Best

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2018 The Zippertubing® Company, Chandler, Arizona.

DVH-40 is a heavyweight (40-mil) PVC impregnated Nylon/Polyester commercial fabric which provides a tough, yet flexible outer jacket for wire and cable protection. Ideal for outdoor use where cables are exposed to abuse, abrasion, rock impact, or where good wear resistance is required. DVH-40 is an extremely versatile material that has been used in applications varying from protecting undersea cables to abrasion protection jackets for aircraft service cables that are drug over concrete runway aprons. DVH-40 is available in black and can be configured for round, flat and rectangular cable configurations and utilizes numerous closure styles. The material has an operating temperature range of -40° to 82°C.
