DVH-20 - PVC Coated Polyester - 20 Mil

General Purpose PVC Coated Polyester Jacket, 20 Mil

Material Specification: 1104 RoHS REACH Compliant

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

Overview

  • Rugged General Purpose Material
  • Abrasion, Environmental & Chemical Resistant
  • Available in Many Colors
  • Flame Retardant

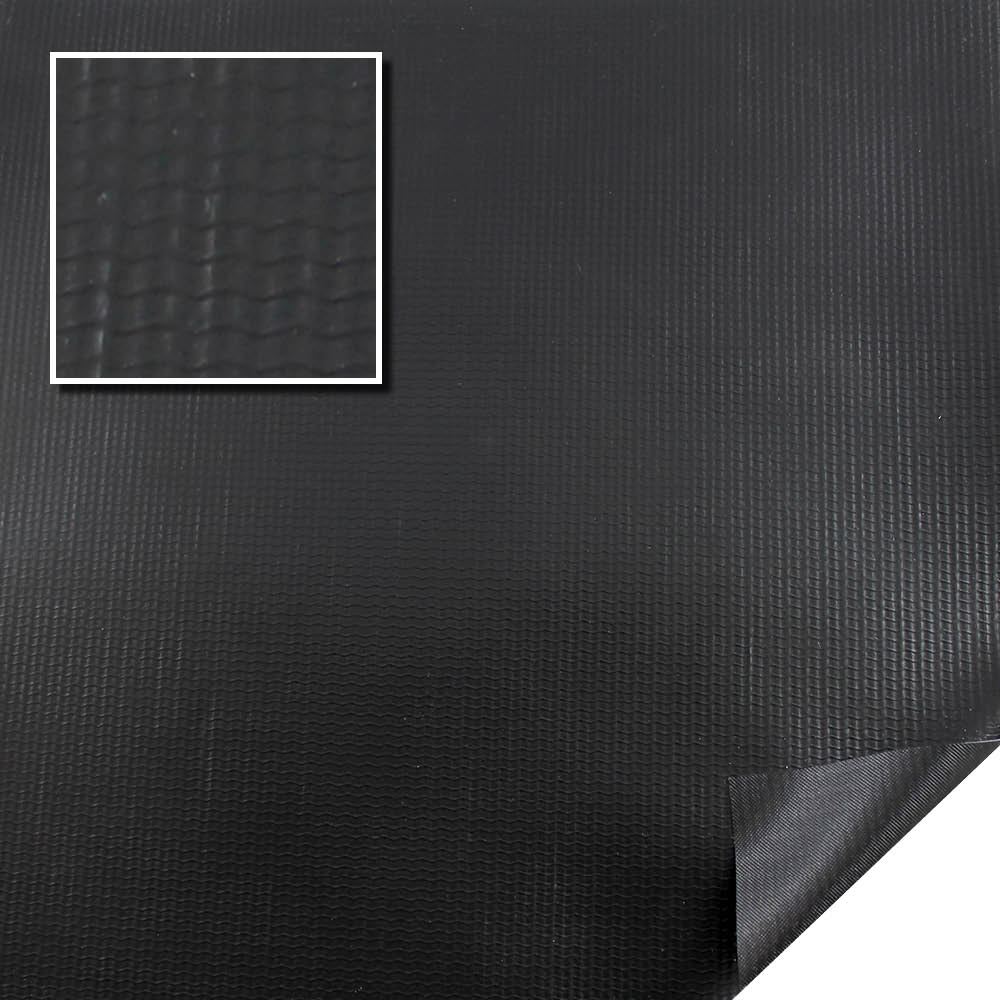

DVH-20 is a 20-mil thick PVC impregnated Polyester fabric which provides a tough, yet flexible outer jacket for wire and cable protection. Ideal for outdoor use where cables are exposed to abuse, abrasion, rock impact, or where good wear resistance is required. DVH-20 is available in many colors for applications requiring color-coding, can be constructed in round, flat and rectangular cable configurations and utilizes numerous closure styles. The material is flame retardant and has an operating temperature range of -30°C to 85°C.

Specifications

  • Mil-Spec: Mil-C-43006, Type I, Class 1
  • Coating: Polyvinylchloride
  • REACH: Compliant
  • Flame Retardant: Fed-Std-191A Method 5903 - 2 sec. max
  • Thickness: 0.020"
  • Material: Woven Polyester impregnated with PVC
  • Maximum Operating Temperature: 185°F
  • Minimum Operating Temperature: -30°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 200 lbs/min (Warp); 190 lbs/min (Fill)
  • Flexibility: Good
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Similar Materials

    DVH-40 - PVC Coated Polyester - 40 Mil VNH-23 - PVC Coated Nylon Fabric - 23 Mil FRC-15 Canvas Fabric - 15 Mil
    NAME DVH-40 - PVC COATED POLYESTER - 40 MIL VNH-23 - PVC COATED NYLON FABRIC - 23 MIL FRC-15 CANVAS FABRIC - 15 MIL
    DESCRIPTION Heavy Duty PVC Coated Nylon/Polyester Jacket, 40 Mil Mil-Spec PVC Coated Nylon Jacket, 23 Mil Lightweight Multi-Purpose Canvas Jacket, 15 Mil
    RoHS RoHS-10 RoHS-10
    Abrasion Resistance Best Better
    Min Temperature Moderate Extreme Moderate
    Minimum Operating Temperature -40°F -65°F -22°F
    Max Temperature Low Low Low
    Maximum Operating Temperature 180°F 171°F 140°F
    Flexibility Good Better
    View View View

    DVH-20 - PVC Coated Polyester - 20 Mil

    General Purpose PVC Coated Polyester Jacket, 20 Mil

    Material Sprcification: 1104-B

    • Rugged General Purpose Material
    • Abrasion, Environmental & Chemical Resistant
    • Available in Many Colors
    • Flame Retardant
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • Mil-Spec: Mil-C-43006, Type I, Class 1
  • Coating: Polyvinylchloride
  • REACH: Compliant
  • Flame Retardant: Fed-Std-191A Method 5903 - 2 sec. max
  • Thickness: 0.020"
  • Material: Woven Polyester impregnated with PVC
  • Maximum Operating Temperature: 185°F
  • Minimum Operating Temperature: -30°F
  • RoHS: RoHS-10
  • Shelf Life: 36 Months
  • Tensile Strength: 200 lbs/min (Warp); 190 lbs/min (Fill)
  • Flexibility: Good
  • DESCRIPTION

    DVH-20 is a 20-mil thick PVC impregnated Polyester fabric which provides a tough, yet flexible outer jacket for wire and cable protection. Ideal for outdoor use where cables are exposed to abuse, abrasion, rock impact, or where good wear resistance is required. DVH-20 is available in many colors for applications requiring color-coding, can be constructed in round, flat and rectangular cable configurations and utilizes numerous closure styles. The material is flame retardant and has an operating temperature range of -30°C to 85°C.

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
