Z-Track (PFR) with Drawing Number: 2007

Z-Track (PFR)

Specification No. 2007

Extremely Versatile, Medium Duty, Extruded Interlock

  • Universal Track
  • Round, Flat, Rectangular applications
  • For diameters up through 4.0"
  • Applicable for all EMI Shield types
  • Closure tool required

Raw materials are not sold separately, please contact the sales department for any special requirements.

Material Specifications

Available Attributes

Material Color Black

Z-Track (PFR)

Shelf-Life 60 months
RoHS Compliant
Compound Polyurethane
Material Thickness 0.018"
Temperature Range -37° to 90°C (-34.6° to 194°F)
Profile Low
External Closure Features No
Tool Required Yes (Upgraded Plier Tool Available)
Closure Strength Good
Flexibility Best
Bundle Size Small - Medium (Typical Bundle Size: 3/8" - 4.0")
Ideal Application Round jackets <4" in diameter that require a strong and flexible closure.
Shape of Installation Round
Exterior Material Polyether-type Polyurethane
Composition Polyether type, thermoplastic Polyurethane compound (TPU)
Elongation 340%
Used As A Single Extrusion No
Roll Length Up to 200 feet continuous

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2018 The Zippertubing® Company, Chandler, Arizona.

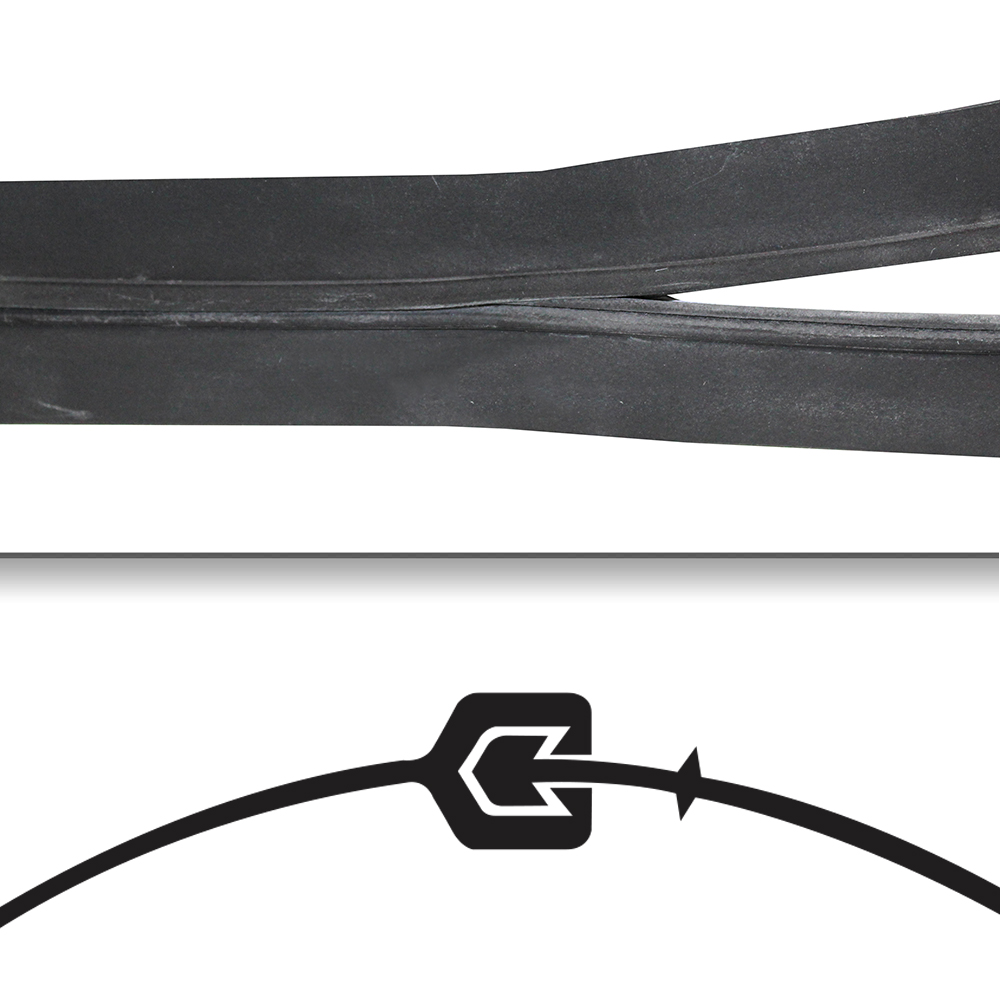

The Z-Track (PFR) is made of extremely flexible, flame retardant poly(ether) urethane material that has a soft, rubber-like texture. This material can be used in airborne and shipborne installations. Z-Track (PFR) is available in black color only.
