Z-Track (PVC) with Drawing Number: 2005

Z-Track (PVC)

Specification No. 2005

Extremely Versatile, Medium Duty, Extruded Interlock

  • Universal Closure Track
  • Multiple Polymer Compound Types
  • Extremely Broad Performance Range
  • Round Cable (3/8" & Up)
  • Flat & Rectangular Cable (1-1/4" & Up)
  • All EMI Shield Material Types
  • Should be First Choice Closure
  • ZTZ-SP Plier Tool Required

Raw materials are not sold separately, please contact the sales department for any special requirements.

Material Specifications

Available Attributes

Material Color Black

Z-Track (PVC)

Shelf-Life 36 months
RoHS Compliant
Temperature Range -20° to 105°C (-4° to 221°F)
Material Thickness 0.020"
Profile Low
External Closure Features No
Tool Required Yes (Upgraded Plier Tool Available)
Closure Strength Best
Flexibility Better
Bundle Size Small - Medium (Typical Bundle Size 3/8" - 4.0")
Ideal Application Round jackets <4" in diameter that require a strong and flexible closure.
Shape of Installation Round
Exterior Material Polyvinyl Chloride (PVC)
Roll Length Up to 200 feet continuous
Composition Polyvinyl Chloride
Tensile Strength 15lbs/in-width
Elongation 320%
Flame Retardant V-0 / UL 94
Used As A Single Extrusion No

Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © 2018 The Zippertubing® Company, Chandler, Arizona.

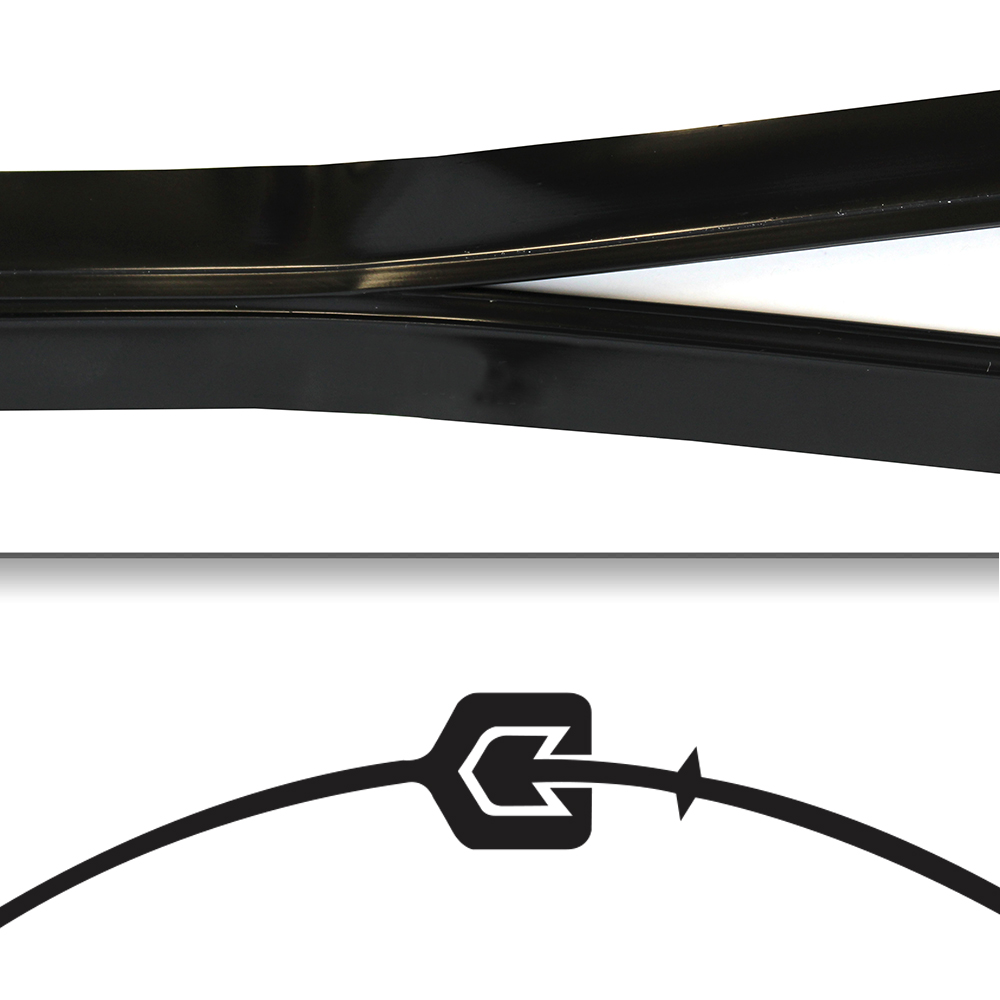

The Z-Track closure is a medium size Arrowhead & Channel interlock design approximately .150" wide and is the most versatile closure offered for Zip-On jacket applications. It should always be considered as the first closure choice when designing a wrap-a-round jacket system. Z-Track is extruded from flame retardant Polyvinylchloride polymer. The standard track color is black, which can be utilized with all PVC based jacket materials and can also be special ordered in clear for large projects.
