Heat Sealable Hook-and-Loop

Heat Sealable Hook-and-Loop consists of two mating woven strips which form a secure fastener when pressed together.

Material Specification: 5102 RoHS

Select product options

Raw materials are not available for standalone purchase; instead, they are intended to be integrated into a tailor-made, custom-engineered solution.

Overview

  • Secure fastener
  • Heat-weldable adhesive
  • Can be peeled apart to disengage

Heat Sealable Hook-and-Loop is a secure tape fastener consisting of two mating woven strips with a heat-weldable adhesive on the reverse side for attaching to flexible plastic materials.

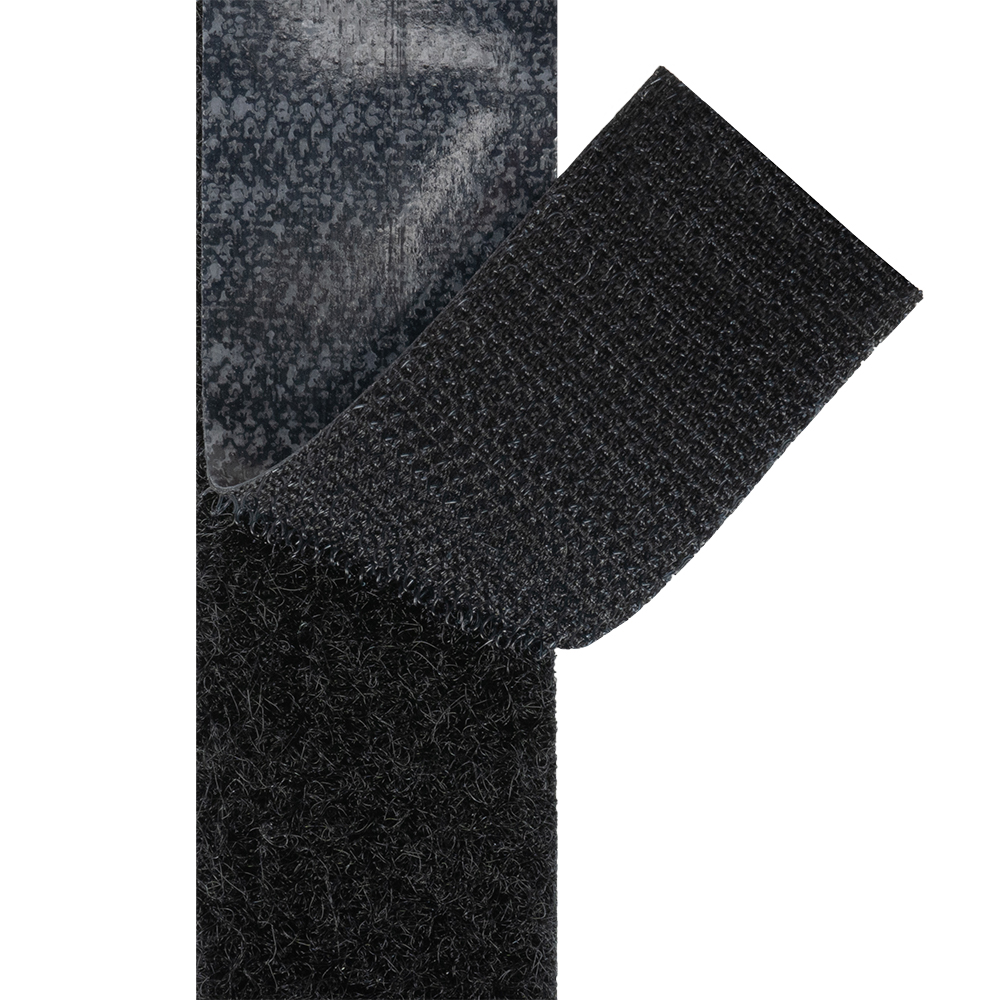

Heat Sealable Hook-and-Loop provides a tape fastener consisting of two mating woven strips made from nylon. One strip has small, stiff hooks and the other has tiny, soft fabric loops. When the strips are pressed together they form a secure fastener, which can be peeled apart to disengage. The reverse side of hook-and-loop has a clear, heat-weldable adhesive allowing for the attachment to flexible plastic materials.

The advantage of these hook-and-loop materials is to provide a more versatile wrap-around product line. As with many of our other customizable products, we can now offer you more cut-to-length products for just about every application, from the automotive field to the military. Cutting a Zippertubing® jacket and the heat sealable hook-and-loop allows you to use the product in more applications, including alternative custom installations.

Heat Sealable Hook-and-Loop comes in black or white; custom colors are available upon request. Operational temperature ranges from -20°F to 200°F (-28°C to 93°C).

Specifications

  • Thickness: 0.125"
  • Material: Nylon
  • Maximum Operating Temperature: 200°F
  • Minimum Operating Temperature: -20°F
  • RoHS: RoHS-6
  • Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.

    Heat Sealable Hook-and-Loop

    Heat Sealable Hook-and-Loop consists of two mating woven strips which form a secure fastener when pressed together.

    Material Sprcification: 5102-B

    • Secure fastener
    • Heat-weldable adhesive
    • Can be peeled apart to disengage
    WARNING: Raw materials are not sold separately, please contact the sales department for any special requirements.

    SPECIFICATIONS

  • Thickness: 0.125"
  • Material: Nylon
  • Maximum Operating Temperature: 200°F
  • Minimum Operating Temperature: -20°F
  • RoHS: RoHS-6
  • DESCRIPTION

    Heat Sealable Hook-and-Loop is a secure tape fastener consisting of two mating woven strips with a heat-weldable adhesive on the reverse side for attaching to flexible plastic materials.

    Heat Sealable Hook-and-Loop provides a tape fastener consisting of two mating woven strips made from nylon. One strip has small, stiff hooks and the other has tiny, soft fabric loops. When the strips are pressed together they form a secure fastener, which can be peeled apart to disengage. The reverse side of hook-and-loop has a clear, heat-weldable adhesive allowing for the attachment to flexible plastic materials.

    The advantage of these hook-and-loop materials is to provide a more versatile wrap-around product line. As with many of our other customizable products, we can now offer you more cut-to-length products for just about every application, from the automotive field to the military. Cutting a Zippertubing® jacket and the heat sealable hook-and-loop allows you to use the product in more applications, including alternative custom installations.

    Heat Sealable Hook-and-Loop comes in black or white; custom colors are available upon request. Operational temperature ranges from -20°F to 200°F (-28°C to 93°C).

    Specifications subject to change without notice. All statements and technical information contained herein are based on tests we believe to be reliable, but the accuracy or completeness is not guaranteed under all circumstances. Before using Zippertubing® products, the user shall determine suitability for the intended use, and user assumes all responsibility for improper selection. Published attenuation values of Zippertubing® shielding have been verified by laboratory testing of the respective shielding materials. Actual installed attenuation values may differ due to installation techniques and final assembly operation parameters which are beyond the control of Zippertubing®. Actual attenuation values can only be determined by the end user testing the completed assembly. U.S. and International Patents and patents pending. © The Zippertubing® Company, Chandler, Arizona.
